Ducati Monster 1200 – Monster Essentials

Upgrades to the Ducati Monster 1200 are substantial. Power climbs from 135 to 150 bhp (now the same as the Monster 1200 S), power delivery is also improved with new fly by wire fuel and power mapping. The chassis and overall design are changed for this model year. The chassis is sleeker and more defined with a more minimalistic look.

The Monster 1200 design has been built on a brief – if it is not of meaningful use or classified as non essential then don’t include it.

Pillion and passenger footrest hangers have been separated ensuring that the rider footrest position is vastly improved. The new sculpture of the bike now resembles the Monster 1200 R much more closely. A narrower waistline giving an enhanced feet down position.

Mimimalisation also has the by product of weight loss ensuring that this latest model Ducati Monster 1200 remains a nimble and sharp turning motorcycle.

If you are looking for a bike with a sporty upright riding position that will give you endless hours of pure fun and should you wish, will allow you to chase down that adrenaline rush, look no further, the Monster has to be the choice.

The Monster S version comes standard with Ohlins suspension and a quick shifter that works on both up and down shifts. (Quick shifter available as an accessory for the standard 1200 model).  For more information or to book a road test, call Sales on 01508 471919.

See the Monster 1200 accessories available and how they would look on your Ducati Monster 1200 using the Ducati Configurator.

Our Accessorise My Ducati page lets you search for and buy genuine Ducati Monster 1200 accessories with just one click.

Accessorise My Ducati

Ducati Monster 1200

Ergonomics

The Monster 1200 guarantees maximum riding pleasure without compromise thanks to the even more powerful Testastretta 11° DS engine, fluid torque and a perfectly balanced chassis that works in harmony with the latest-generation brakes and electronics. The seat, adjustable from 795mm to 820 mm, and the wide handlebar ensure manoeuvrability and practicality in traffic, while the compact aluminium swingarm and 1485mm wheelbase make it even quicker when it comes to leaning and changes of direction, enhancing the sports riding enjoyment and increasing versatility.

1198cm3 Testastretta 11° DS

The Monster 1200 is powered by the latest evolution 1198cm³ liquid-cooled Testastretta 11° DS twin, with 4 valves per cylinder, that unleashes 150 hp at 9250 revs and maximum torque of 12.9 kgm at 7750 revs. With a lambda probe for each cylinder, it autonomously manages and optimises power delivery, while the exhaust ports, with a 50-52 mm section, form part of a 2-1-2 type system, designed with two cylinders of identical length to maximise power and distribution efficiency. The engine of the Monster 1200 is Euro 4 homologated and competitive also in terms of its maintenance intervals, with a valve clearance check required only every 30,000 km.

Gearing and Clutch

The Monster 1200 engine is equipped with a six-speed gearbox and anti-wheelie wet clutch, which can be activated with minimal effort. Thanks to a progressive engagement system, spring preload is automatically increased, ensuring greater sensitivity and optimum comfort even in city traffic. When torque at the wheel has an opposite action, the same mechanism reduces pressure on the clutch discs, allowing them to work in the anti-wheelie sports mode, stabilising the bike even during the aggressive shifting typical of sports riding.

Power and Torque

The Monster 1200’s Testastretta 11° DS engine unleashes 150 hp at 9250 rpm and maximum torque of 12.9 kgm at 7750 rpm: thanks to the new throttle body and compression ratio raised to 13:1, it boasts an impressive torque curve even at low speed. Two spark plugs for each head and Mikuni Ride-by-Wire oval throttle bodies, with a diameter of 56 mm, offer greater regularity of the power delivery, for an even more enjoyable and exciting riding sensation.

Frame

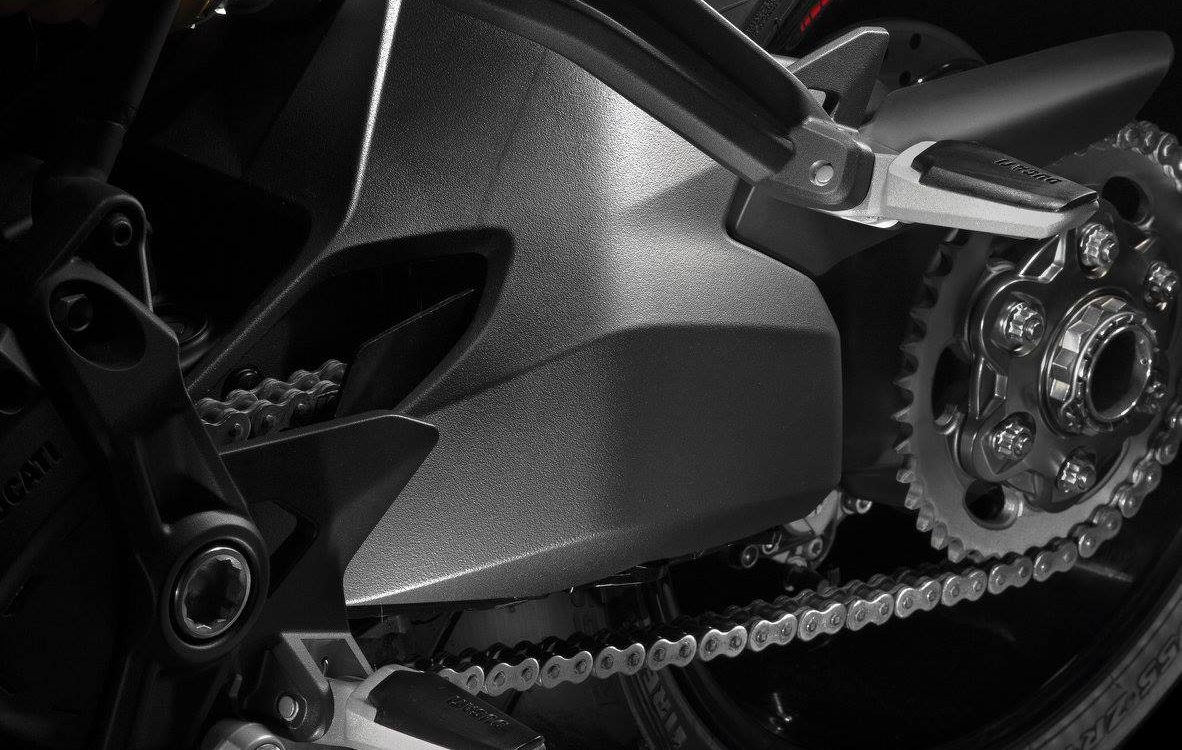

The Monster 1200 uses the engine as a load-bearing element, with the trellis frame connected to the cylinder heads. A concept derived from racing, which allows for a very compact, lightweight frame, ensuring a dry weight of just 182kg and a kerb weight of 209 kg. The use of large pipes also ensures high torsional rigidity. Also connected to the engine are the new single-sided swingarm, which marries perfectly with the compact 1485mm wheelbase, and brand new cast aluminium rider footpegs, separate from those of the passenger to ensure greater freedom of movement during sports riding. The rear sub-frame seat support, also directly attached to the engine, has been redesigned to create a compact structure that can also bear the new passenger footpeg support brackets. The well-balanced chassis and wide handlebar allow the Monster 1200 to combine its innate sports attitude with surprising riding ease.

Suspension

To fully express its sporty character and ensure maximum riding enjoyment, the Monster 1200 uses a rear shock that is directly attached to the vertical engine head and aluminium single-sided swingarm. The fully adjustable suspension differs between the Monster 1200 and Monster 1200 S models. The first mounts a 42 mm Kayaba fork at the front and a Sachs shock at the rear, with adjustable spring preload and rebound damping. The Monster 1200 S boasts a 48mm Öhlins fork with integrated adjuster and a fully adjustable Öhlins rear shock.

Rims and Tyres

The Monster 1200 is equipped with 10-spoke rims in lightweight alloy, a 3.50×17 at the front and 6.00×17 at the rear, while the Monster 1200 S boasts 3-spoke ‘Y’ rims, made even more sporty with the exclusive “S” graphics. Both models use Pirelli DIABLO ROSSO™ III tyres, 120/70 at the front and 190/55 at the rear, produced in a double compound to offer resistance on long-range trips and heightened grip even at extreme lean angles. These high-quality tyres exploit Pirelli EPT, Enhanced Patch Technology, to maximise the area of contact with any lean angle, and FGD, Functional Groove Design, to optimise performance in wet conditions.

Brakes

The Monster 1200 is equipped with two 4-piston Brembo M4.32 monoblock radial callipers at the front that act on 320mm discs, while the Monster 1200 S uses Brembo M50 monoblock callipers and 330mm discs. Both models have radial pumps for the front brakes with separate tanks and a single 245mm disc at the rear, with a two-piston Brembo calliper equipped with pads in a sintered material. The braking system is managed by the Bosch ABS 9.1MP Cornering system, with three different intervention levels that can be deactivated when necessary

Ducati Safety Pack (DSP)

The Monster 1200, in both its standard and S versions, is equipped with the Ducati Safety Pack (DSP) as standard, which, thanks to the Bosch Inertial Measurement Unit (IMU), integrates Bosch ABS 9.1MP Cornering, Ducati Traction Control (DTC) and Ducati Wheelie Control (DWC). An advanced electronics package that enhances dynamic performance, optimises control and offers a high level of safety.

Bosch ABS Cornering

Bosch ABS 9.1MP Cornering exploits the IMU (Inertial Measurement Unit) to effectively measure out the braking power of the front and rear wheels even in critical situations and with a leaning bike. The system acts on three increasing levels of intervention, from a dedicated sports-riding solution, with ABS intervention only at the front and with no identification of rear lift, up to the maximum level of braking optimisation, with identification of rear wheel lift and the Cornering function activated and calibrated for maximum safety. Thanks to interaction with the Riding Modes, the system can offer solutions to suit all situations and riding styles. The ABS can be deactivated via the dash at any time and allows for settings to be recorded and reused at the next Key-On.

Ducati Traction Control (DTC) and Ducati Wheelie Control (DWC)

The Monster is equipped with the latest version of the DTC software, which identifies and controls any sliding of the rear wheel to increase performance and active safety. The system allows the rider to choose between eight different profiles with different intervention levels, each of which has been calibrated to offer a rear slide tolerance value that is proportional to the progressive levels of riding ability and the road conditions. DTC levels are pre-set for each of the three Riding Modes but can be personalised or deactivated depending on rider preference, as well as saved in the individual settings menus and reused at the next Key-On. The Monster 1200 is also equipped with DWC (Ducati Wheelie Control), which analyses the setting of the bike and manages torque and power to ensure safe acceleration and prevent any wheelies. As with the DTC, it is adjustable with 8 levels and is integrated into the Riding Modes.

Colour TFT Instrumentation

The dash of the Monster 1200 boasts a colour TFT display with the three Core, Full and Track configurations, designed to show information relating to the three Riding Modes. In the Sport Riding Mode, the display adopts the exclusive Track configuration, showing only sports riding data while the rev counter graphic is reset with a layout in pure Superbike style. The TFT dash can be personalised and the viewing mode can always be selected independently of the selected Riding Mode.

Overview

Unmistakeably Monster

Essential and minimalistic.

A contemporary icon always featuring the core values of the original Monster. Essential and technological, the Monster 1200 stands out for design and sporty soul.

Concept

Adapt it to your riding style

Complement every riding style

The pre-set Riding Modes allow the rider to optimise bike behaviour depending on riding style. Each of the three Riding Modes (Sport, Touring and Urban), is programmed to act on the electronic Ride-by-Wire (RbW) engine control system and on the ABS, Ducati Traction Control and Ducati Wheelie Control intervention levels.

Design

A contemporary icon

More compact, slimmer and with sportier proportions

The new Monster 1200 has been redesigned to make it more compact, slimmer and with sportier proportions. The lines and the volumes unmistakably recall the legendary Monster, reinterpreting it in a contemporary way. Moreover, the new Monster 1200 sees the return of the tank hook that was included on the first Monster designed by Miguel Galluzzi, and the new colour brings a whole new dynamic

Engine

100% Monster

More powerful, more compact, maximum riding enjoyment

The engine, more powerful and full-bodied at every speed, the more compact dimensions, the revised chassis and the updated electronic equipment including the introduction of the Ducati Quick Shift optional extra on the base model guarantee maximum riding enjoyment and, at the same time, maximum security.

Specification

Specification

General

Instruments Colour LCD display
Warranty 2 years unlimited mileage
Service Interval 9000 miles/12 months
Valve Clearance 18000 miles

Chassis

Frame Tubular steel Trellis frame attached to the cylinder heads
Wheelbase 1,485 mm
Rake 23,3°
Trail
Front Suspension 43 mm Kayaba fully adjustable USD fork
Front Wheel 17"
Front Wheel Travel 130 mm
Front Brake 2 x 320 mm semi-floating discs, radially mounted Brembo Monobloc M4.32 callipers, 4-piston, radial pump with Bosch cornering ABS as standard equipment
Front Tyre 120/70 ZR17
Rear Suspension Progressive linkage with Sachs fully adjustable monoshock, aluminium single-sided swingarm
Rear Wheel 17"
Rear Wheel Travel 149 mm
Rear Brake 245 mm disc, 2-piston calliper, with Bosch cornering ABS as standard equipment
Rear Tyre 190/55 ZR17
Fuel Capacity 16.5 litres
Dry Weight 187 kg
Wet Weight 213 kg
Seat Height Adjustable 795 - 820 mm
Max Height
Max Length

Engine

Type Testastretta 11°, L-Twin cylinder, 4 Desmodromically actuated valves per cylinder
Displacement 1,198
Bore And Stroke 106 x 67.9 mm
Compression Ratio 13,0:1
Power 108 kW (147 hp) @ 9250 rpm
Torque 124 Nm (91 lb-ft) @ 7,750 rpm
Fuel Delivery Electronic fuel injection system, full Ride-by-Wire system, equivalent diameter 56 oval throttle bodies
Exhaust 2-1-2002
Emissions Euro 4
Gearbox 6 speed
Ratio 1=37/15 2=30/17 3=27/20 4=24/22 5=23/24 6=22/25
Primary Drive Ratio 1.84:1
Final Drive Chain
Clutch Slipper and self-servo wet multiplate clutch with hydraulic control
