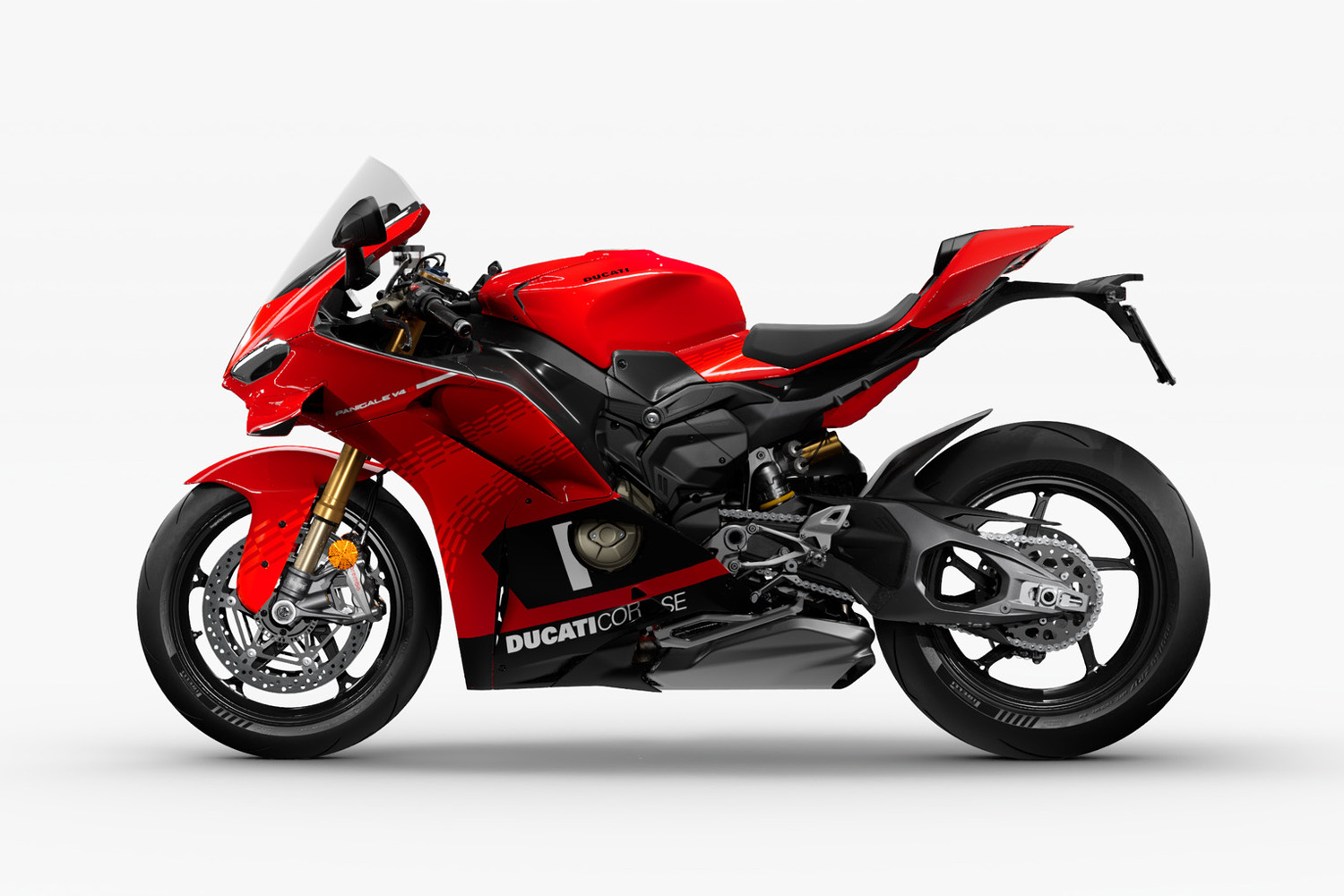

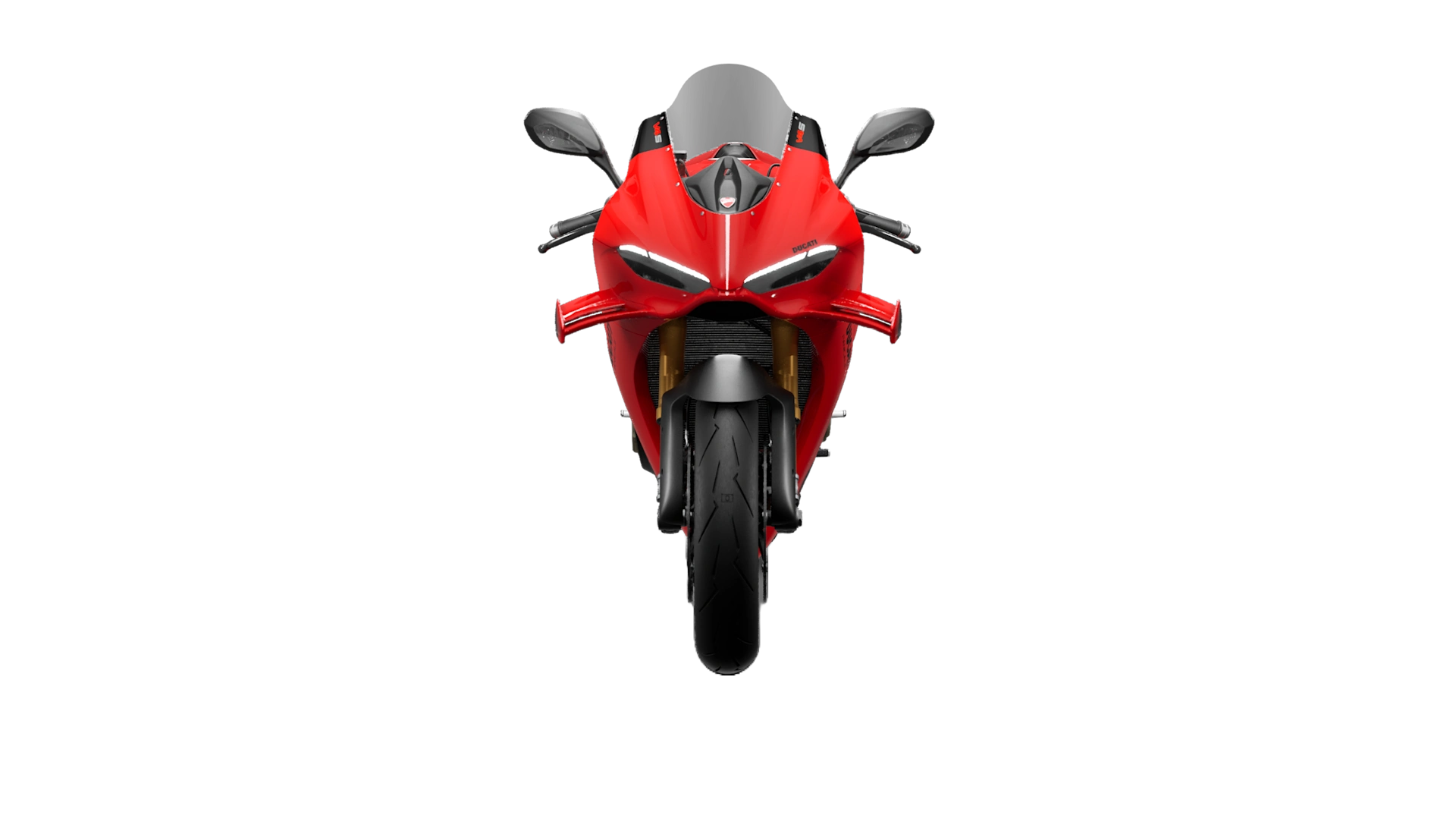

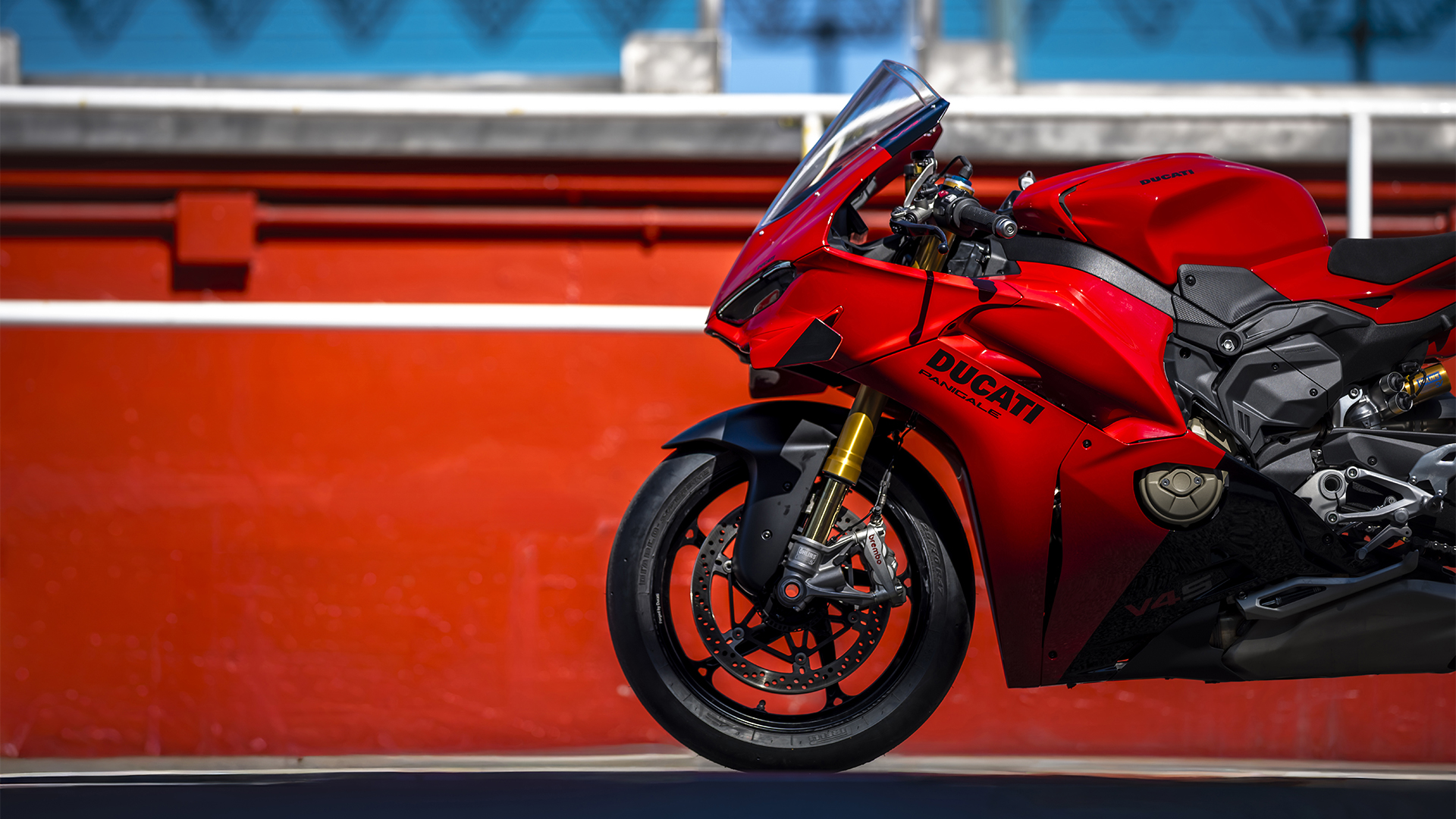

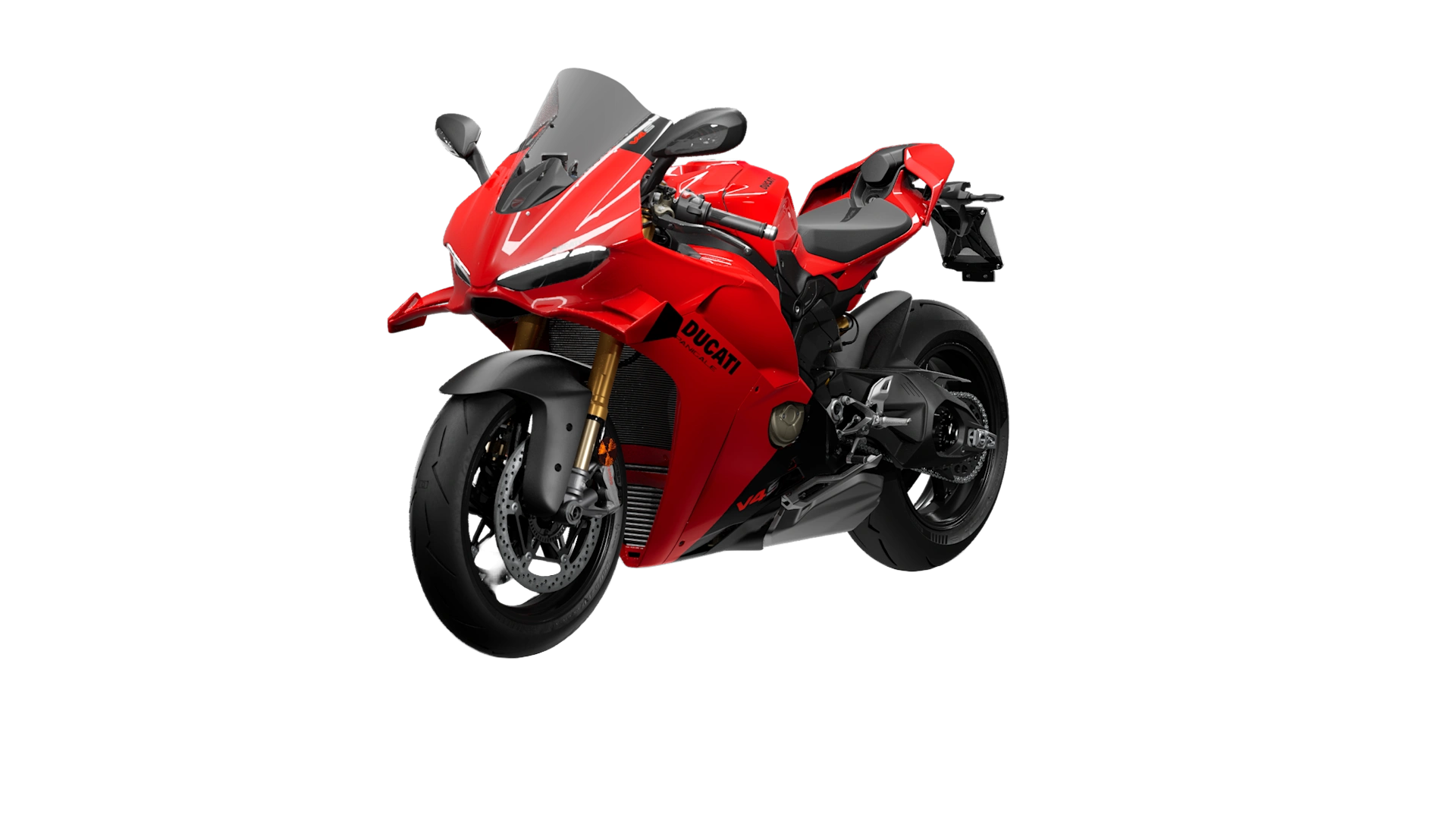

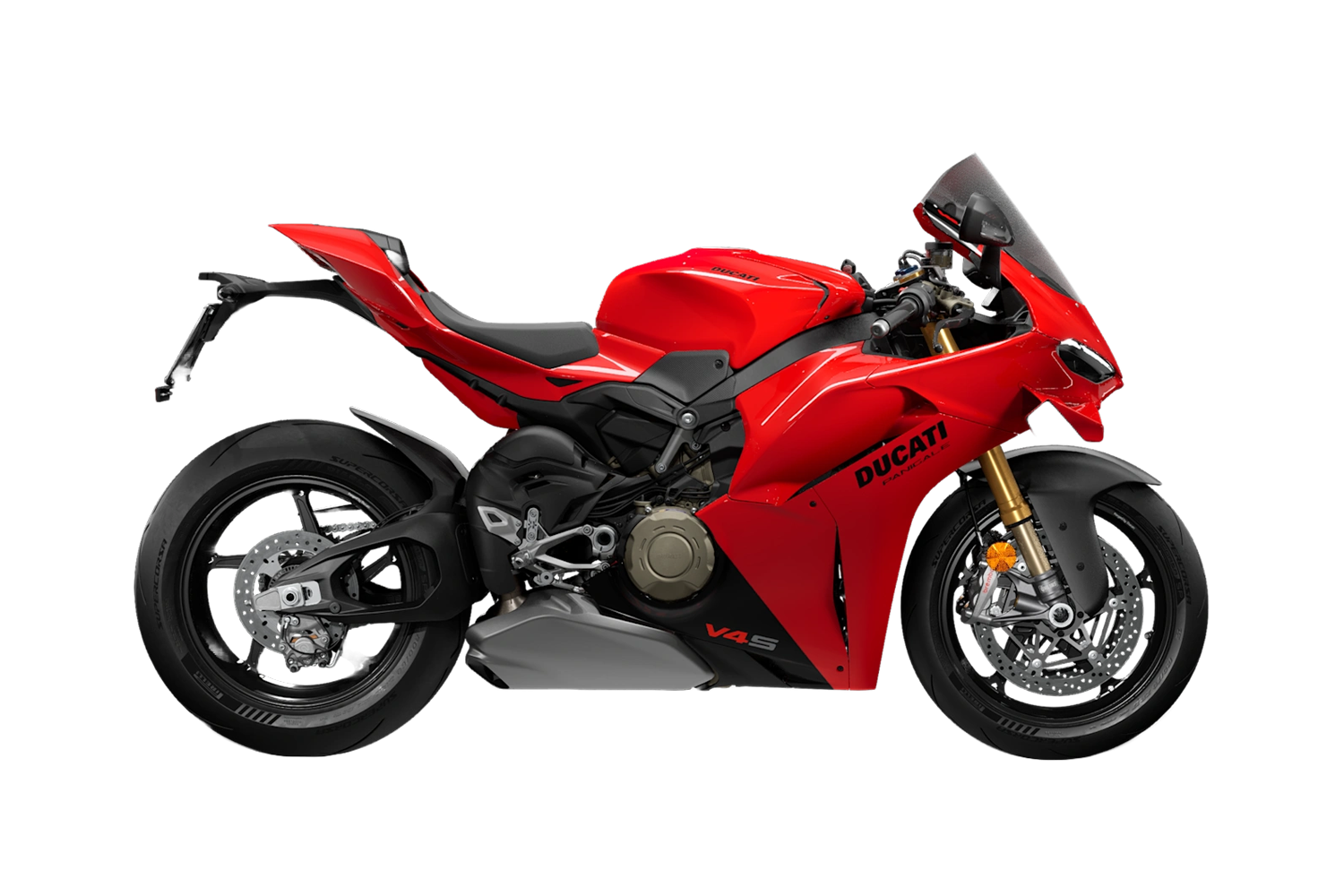

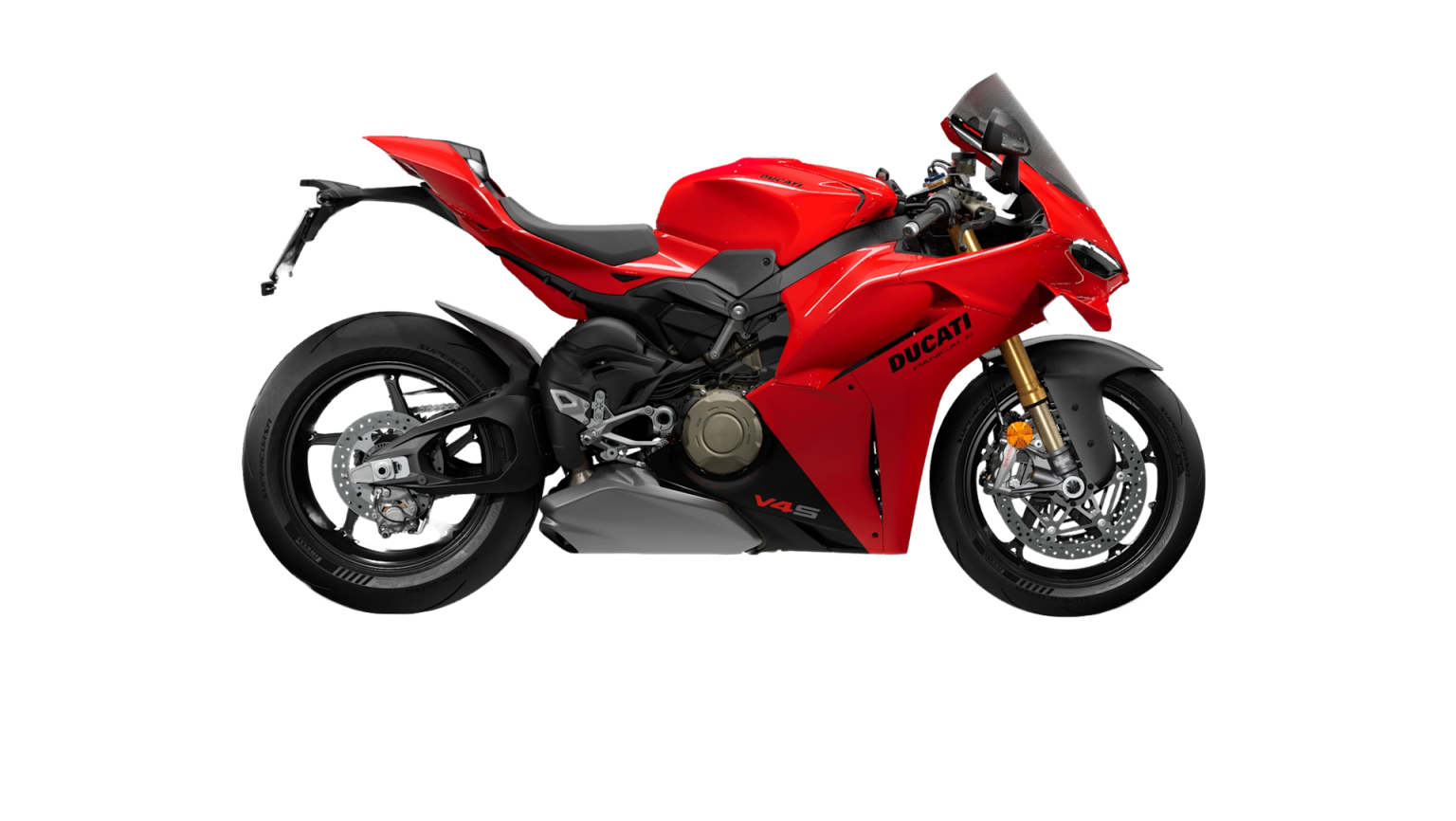

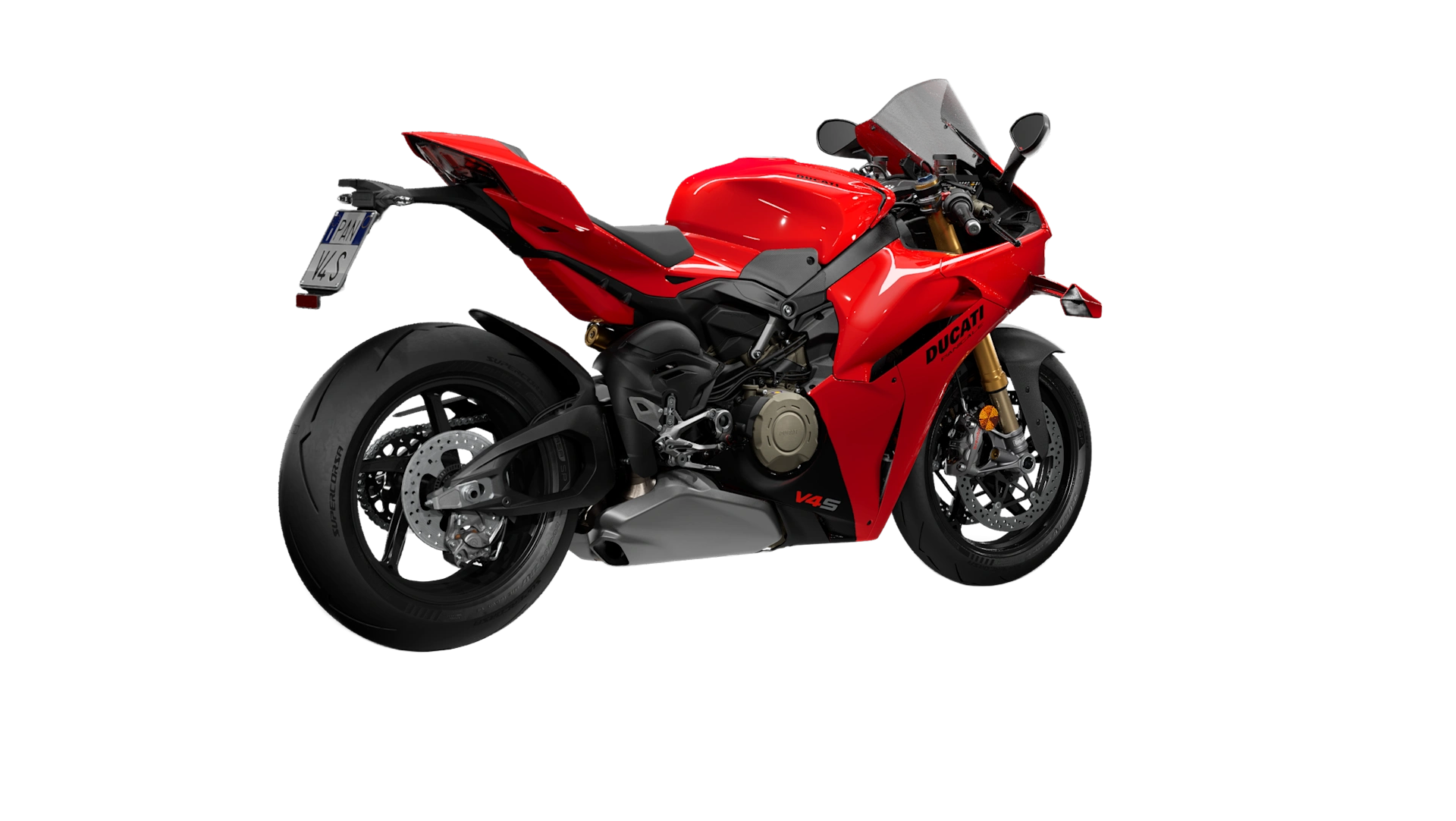

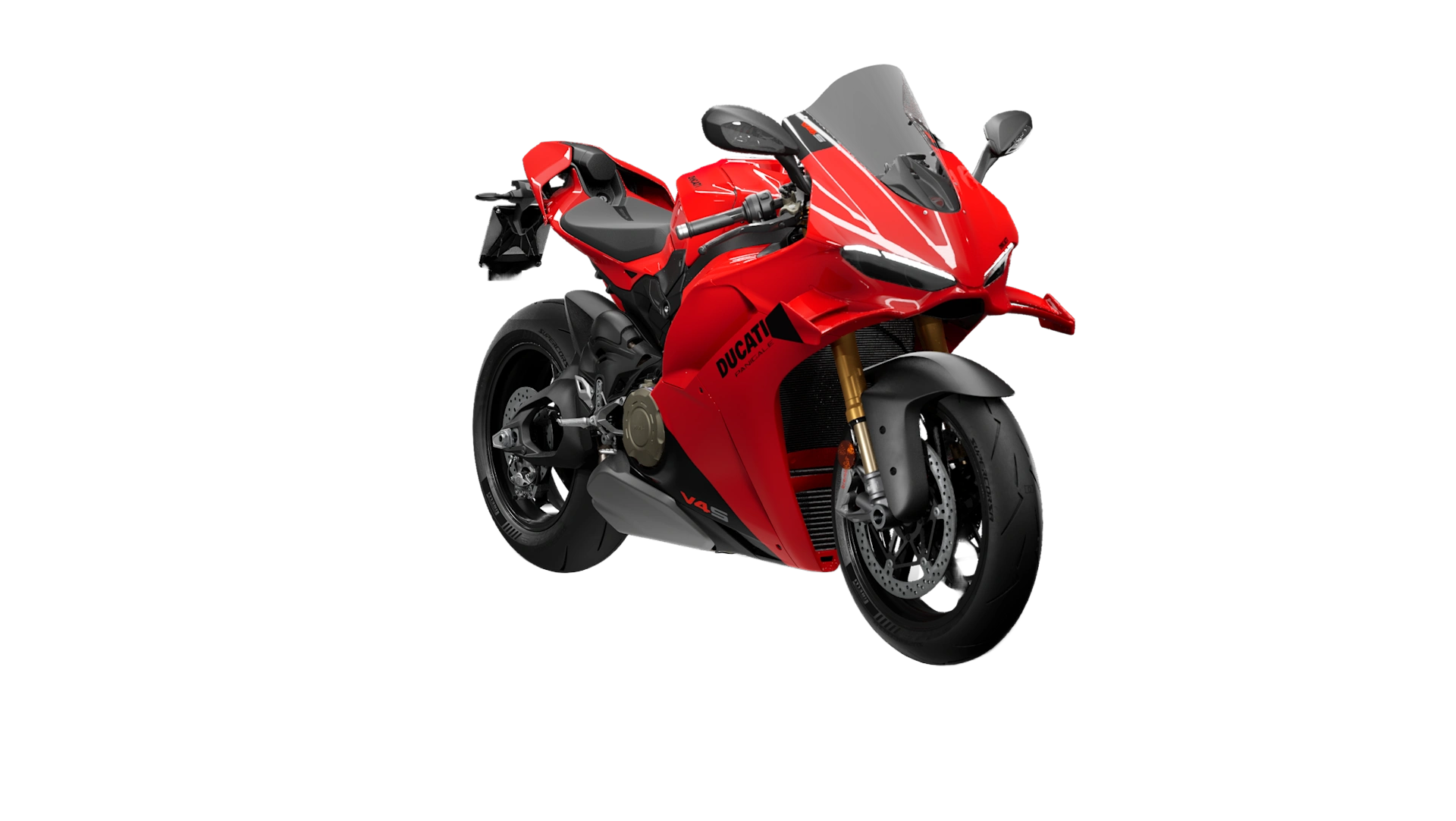

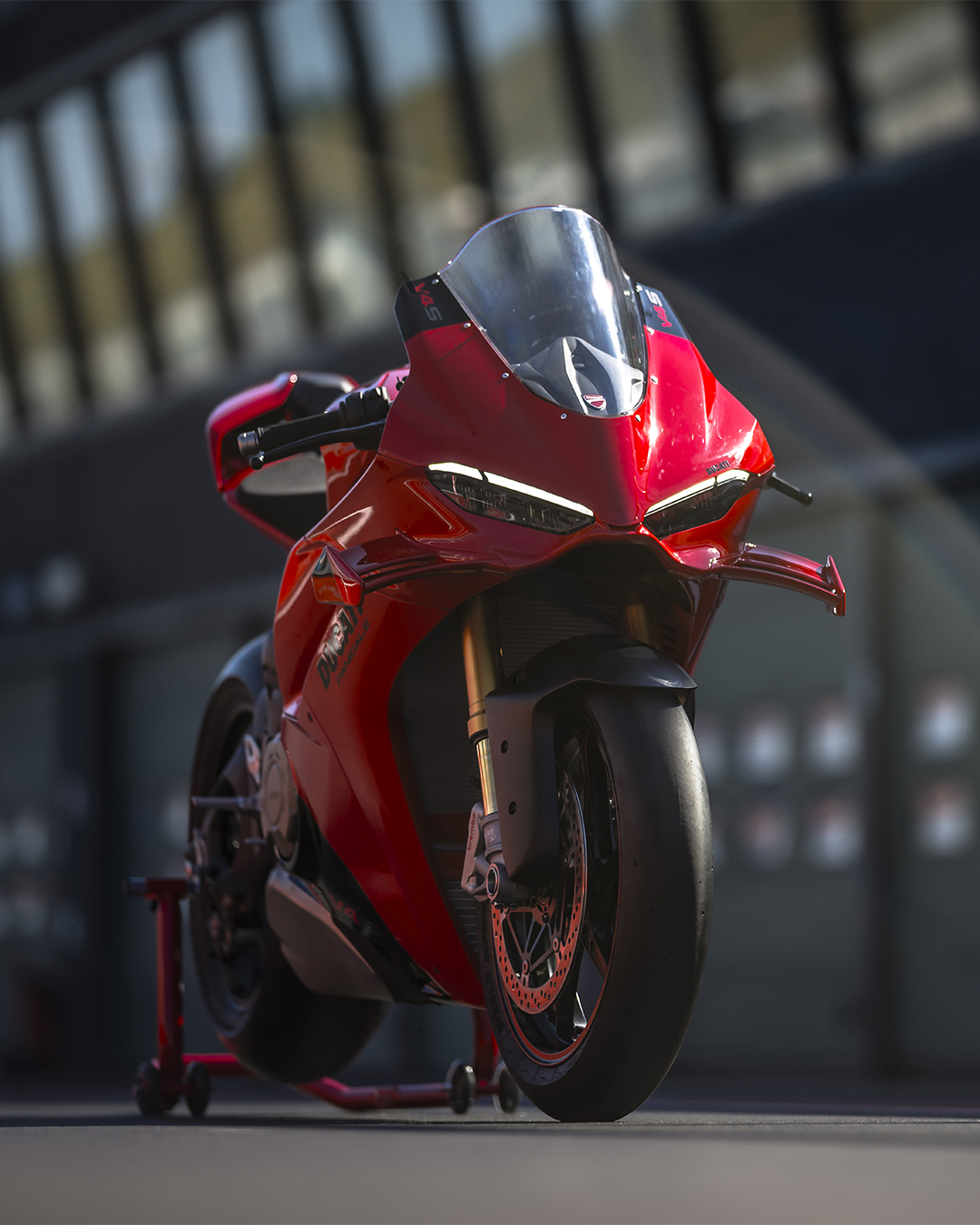

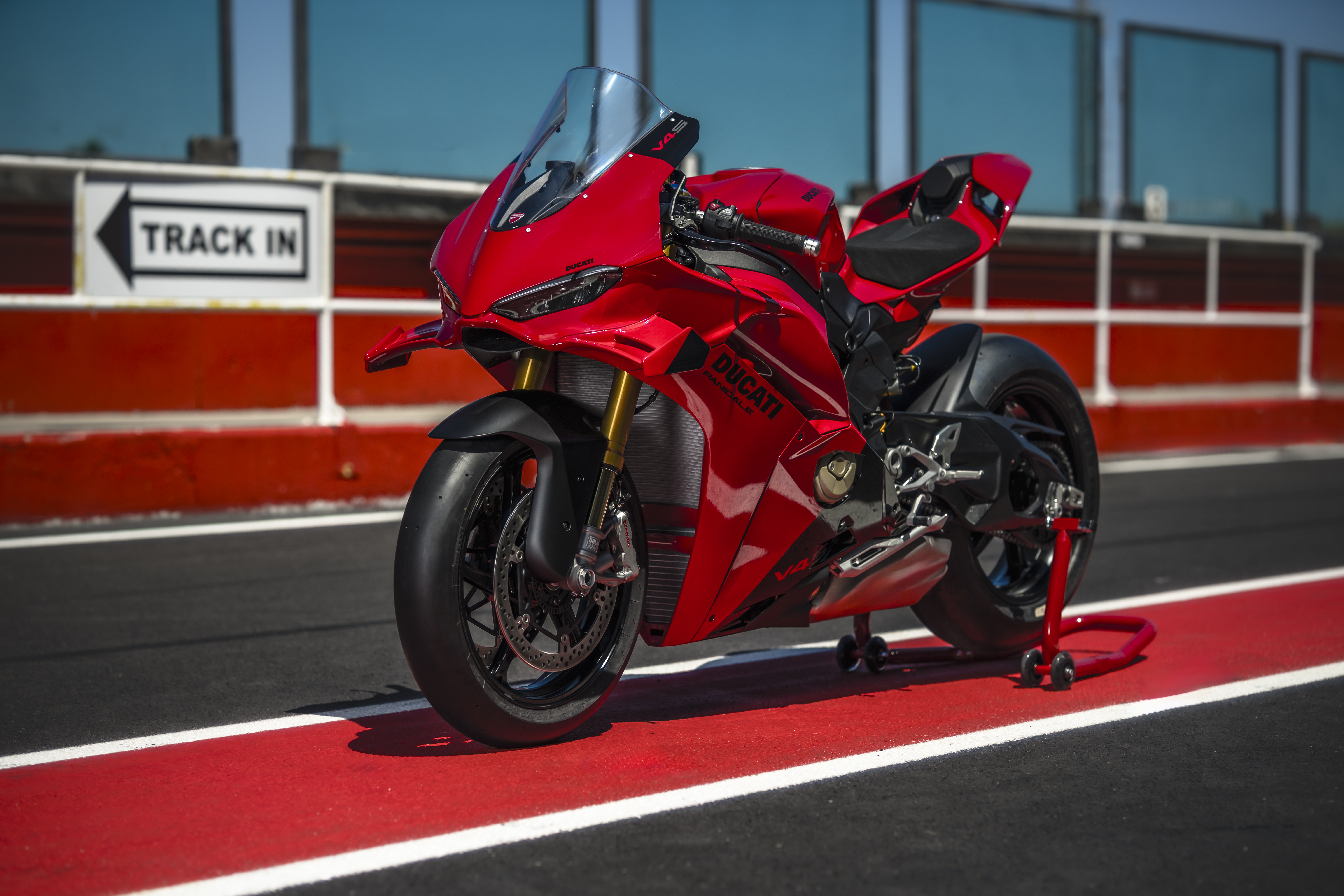

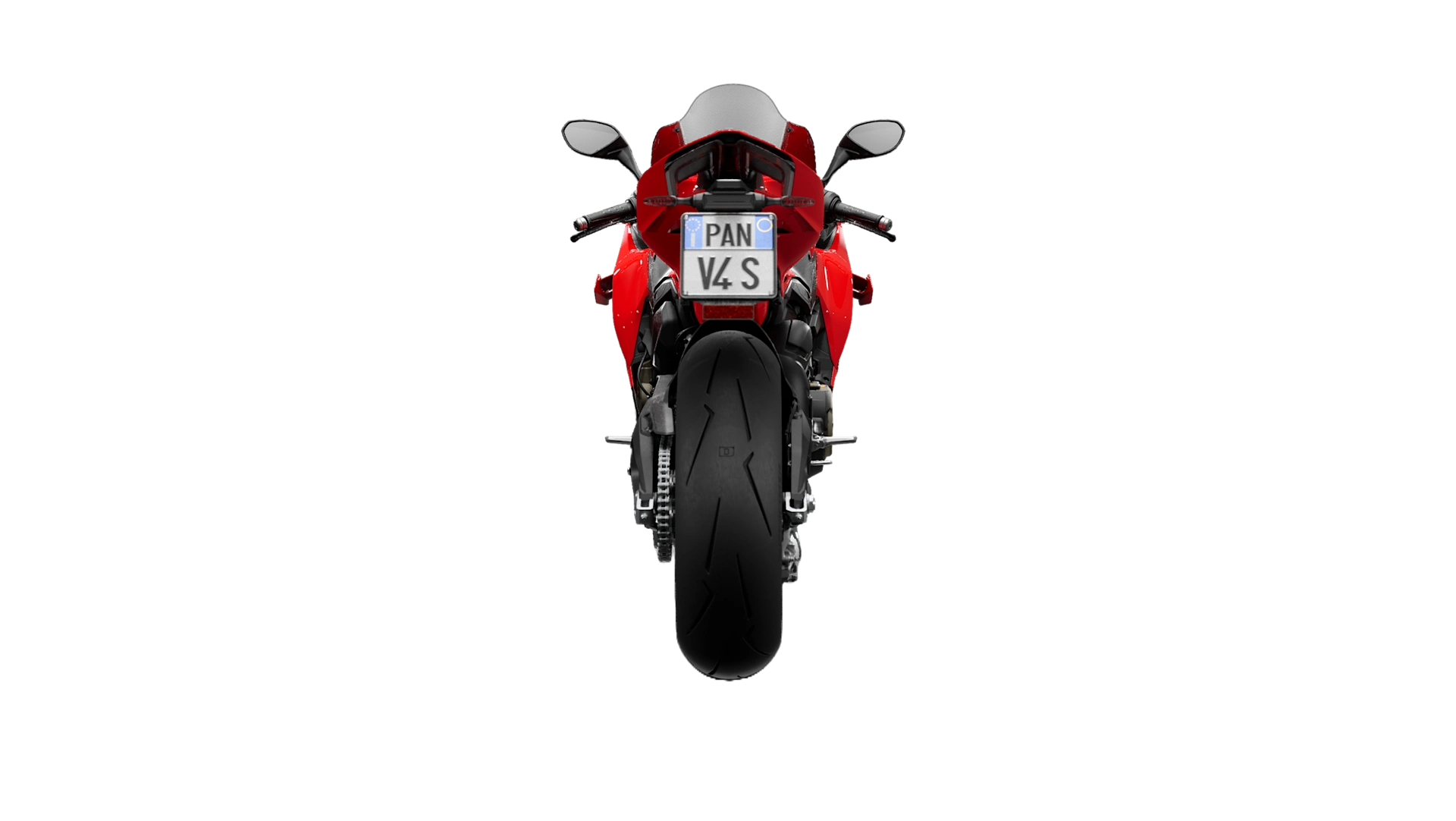

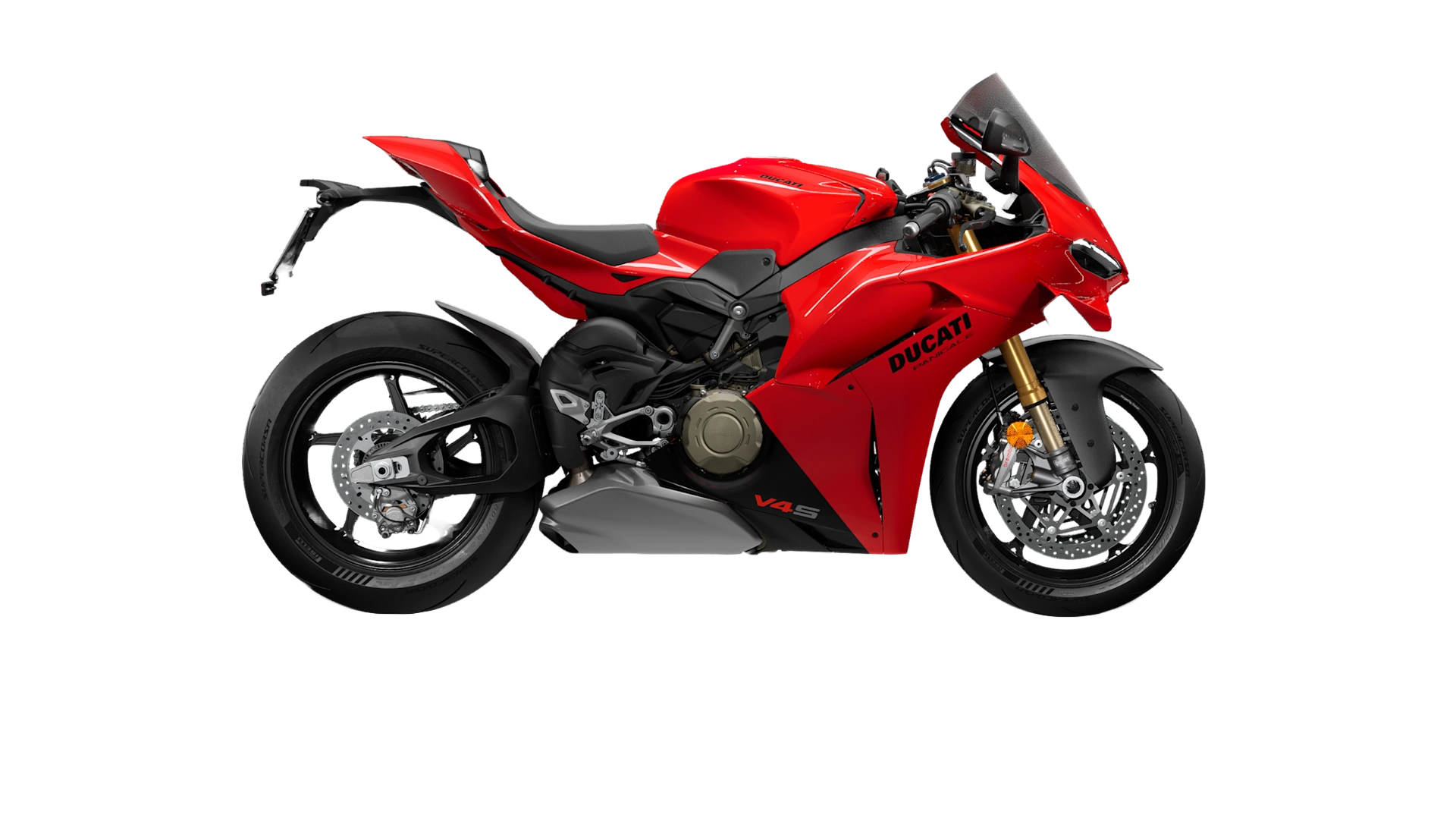

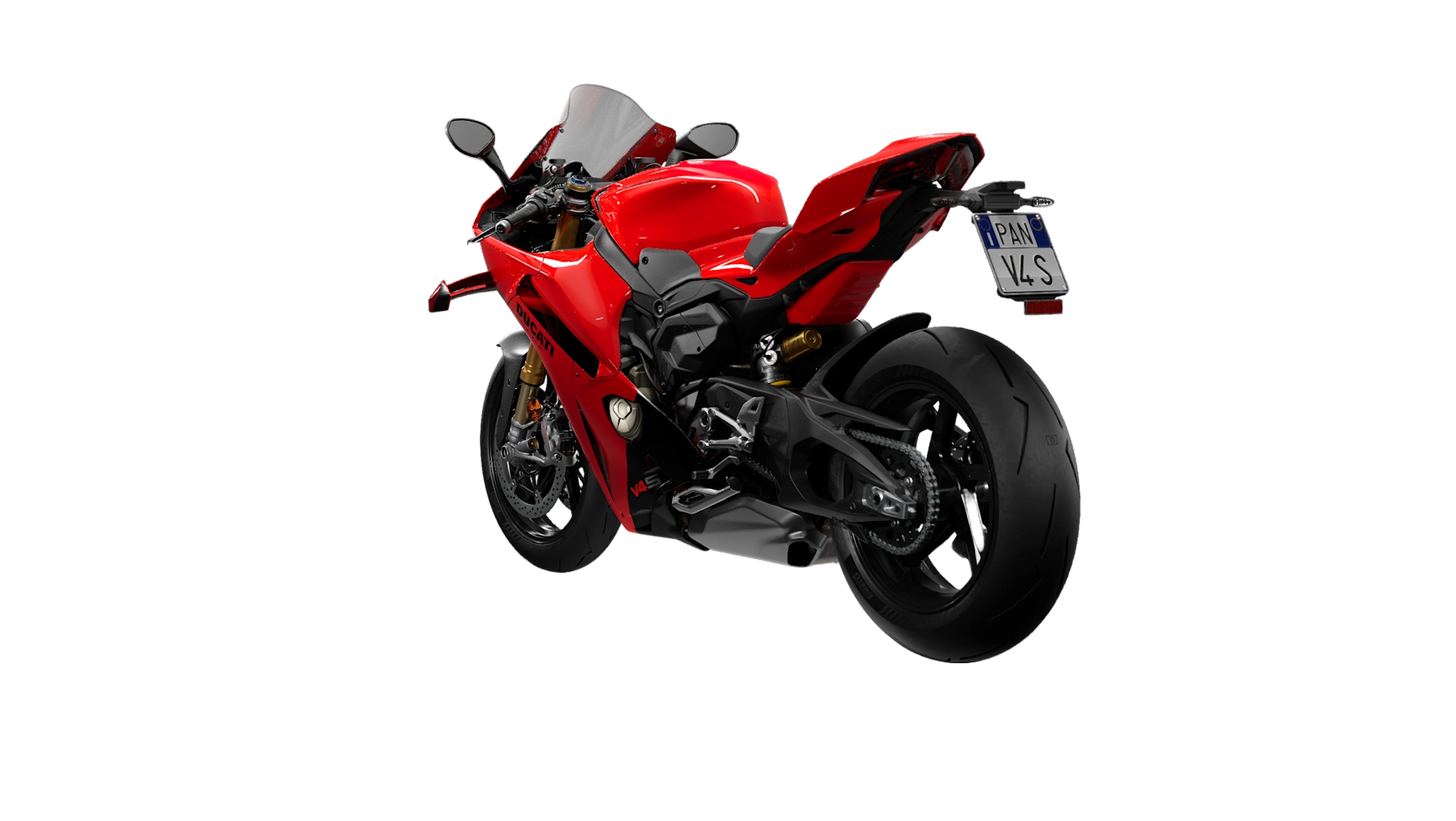

Ducati Panigale V4S

Over and above the standard model, the Ducati Panigale V4 S comes with Ohlins electronic suspension and lightweight Marchesini wheels.

Make it your own – Accessorise My Panigale V4 S

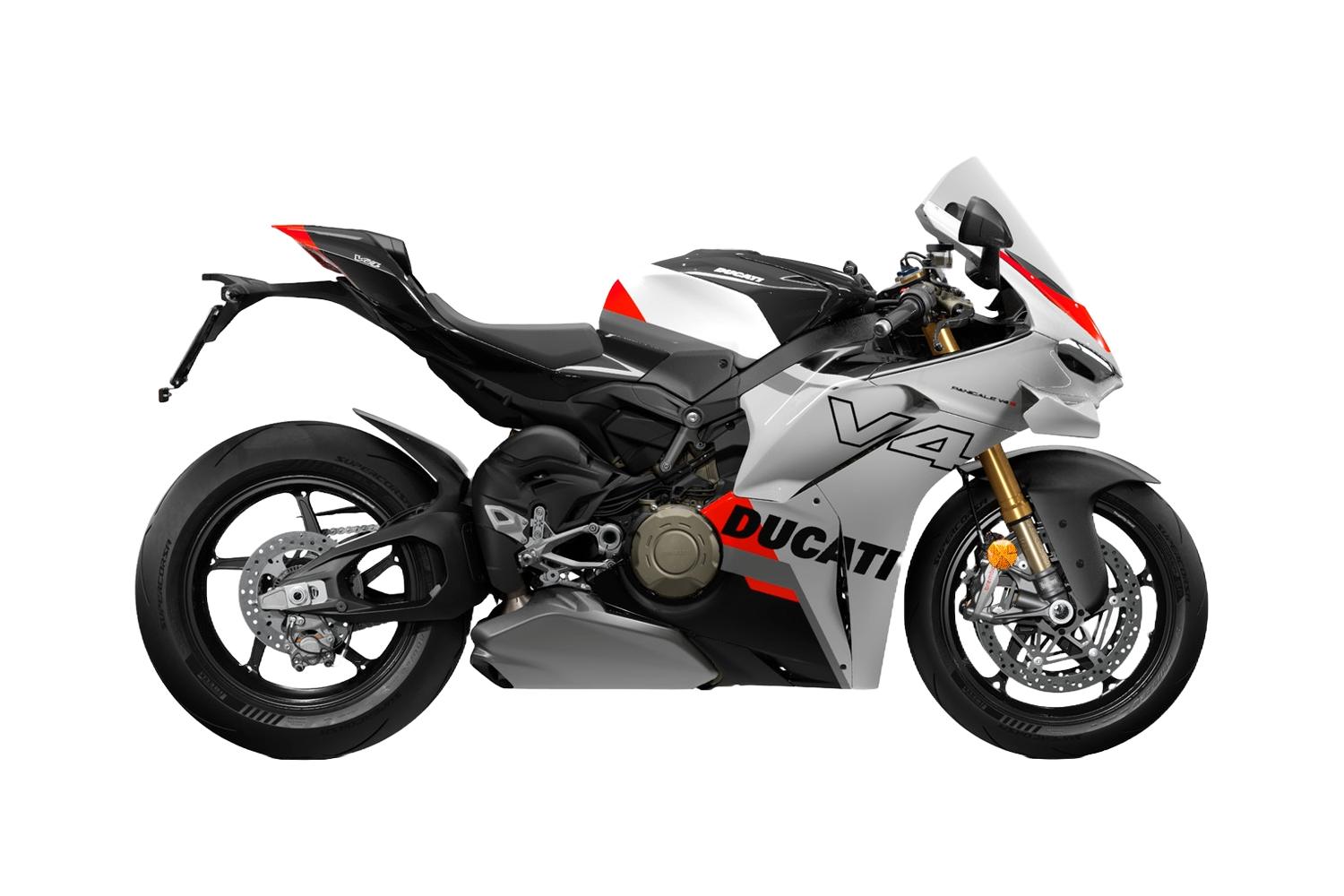

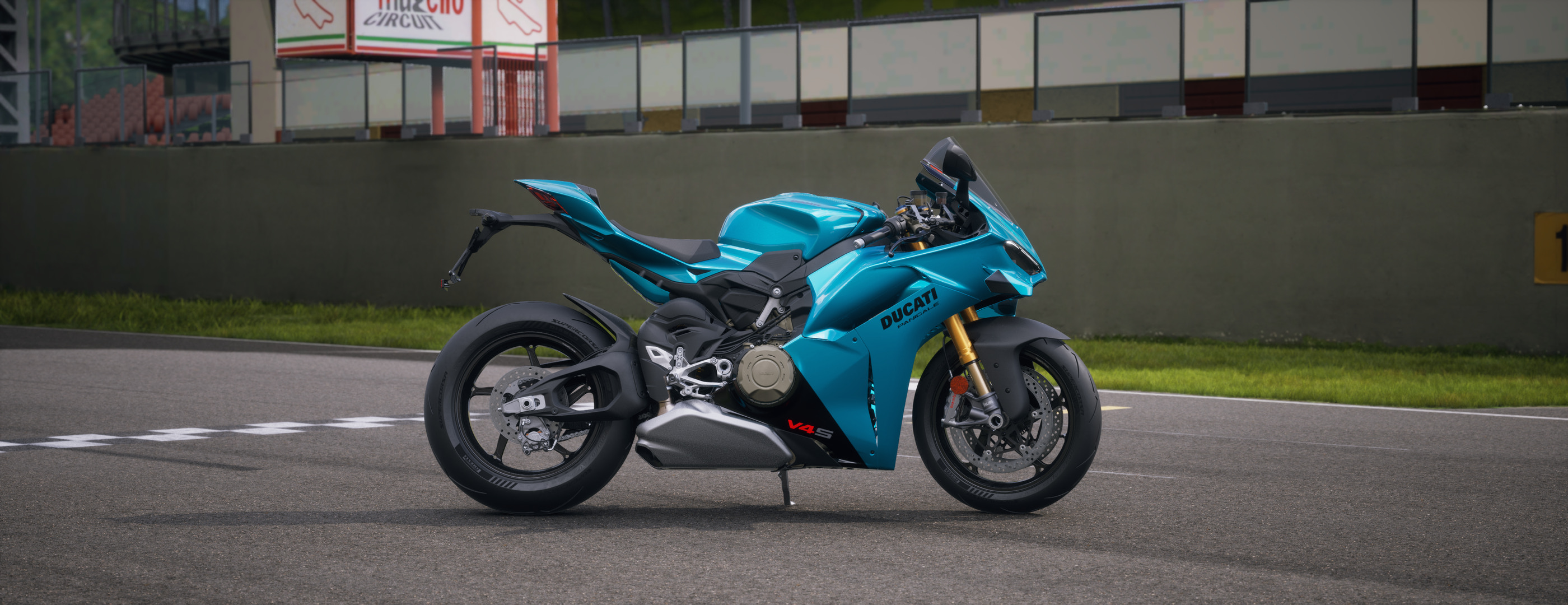

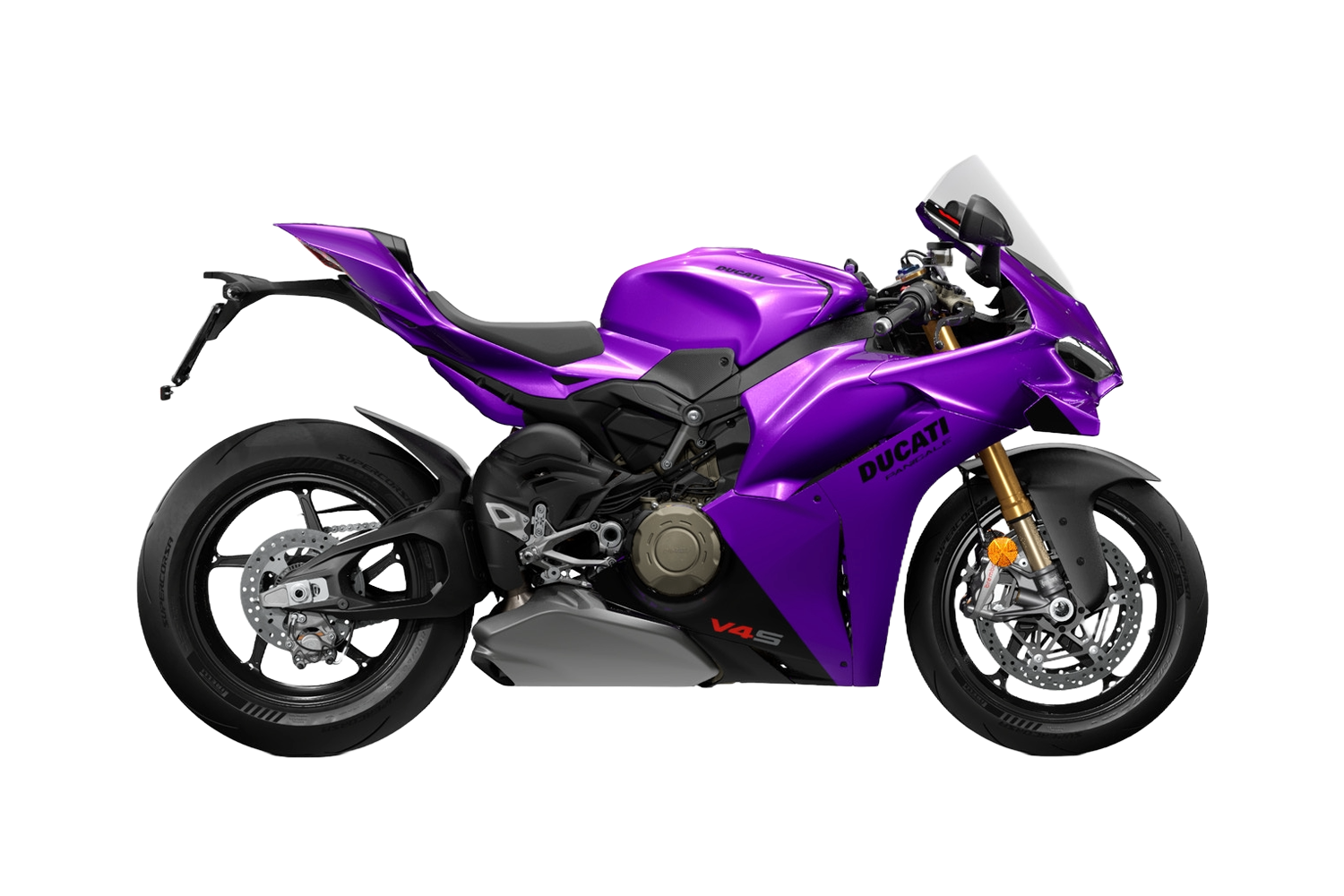

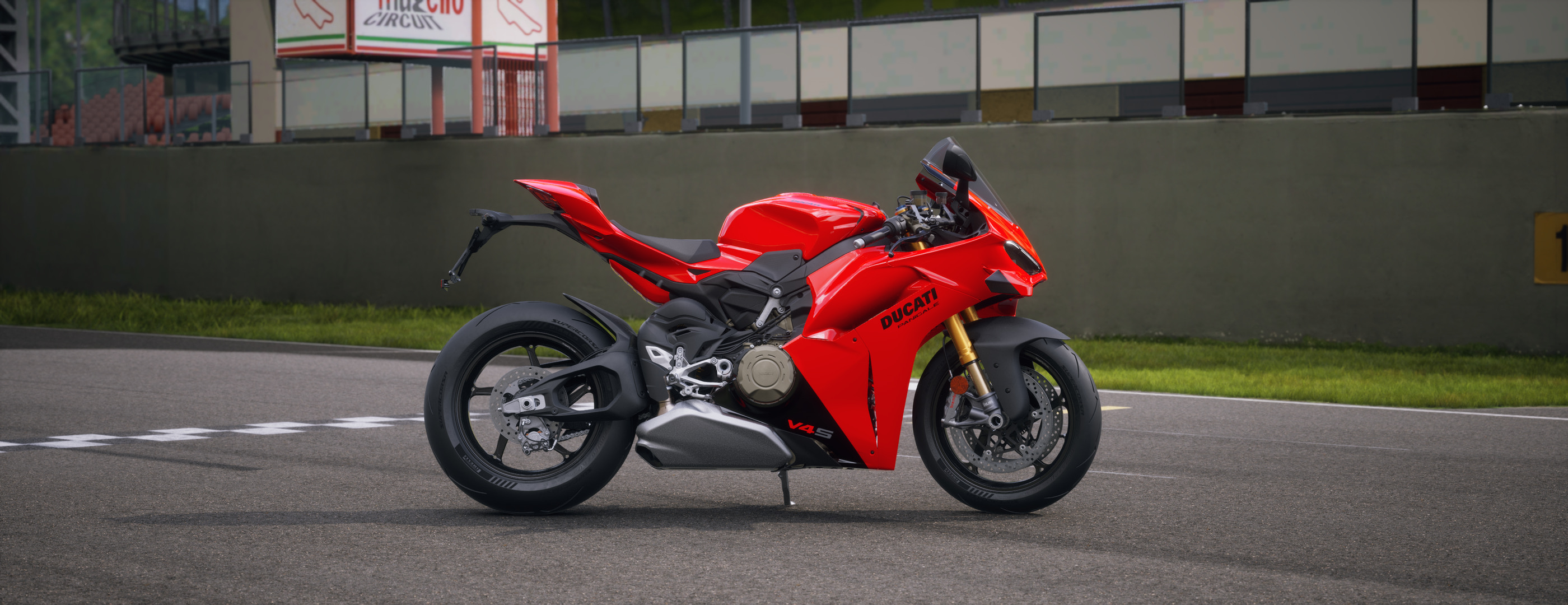

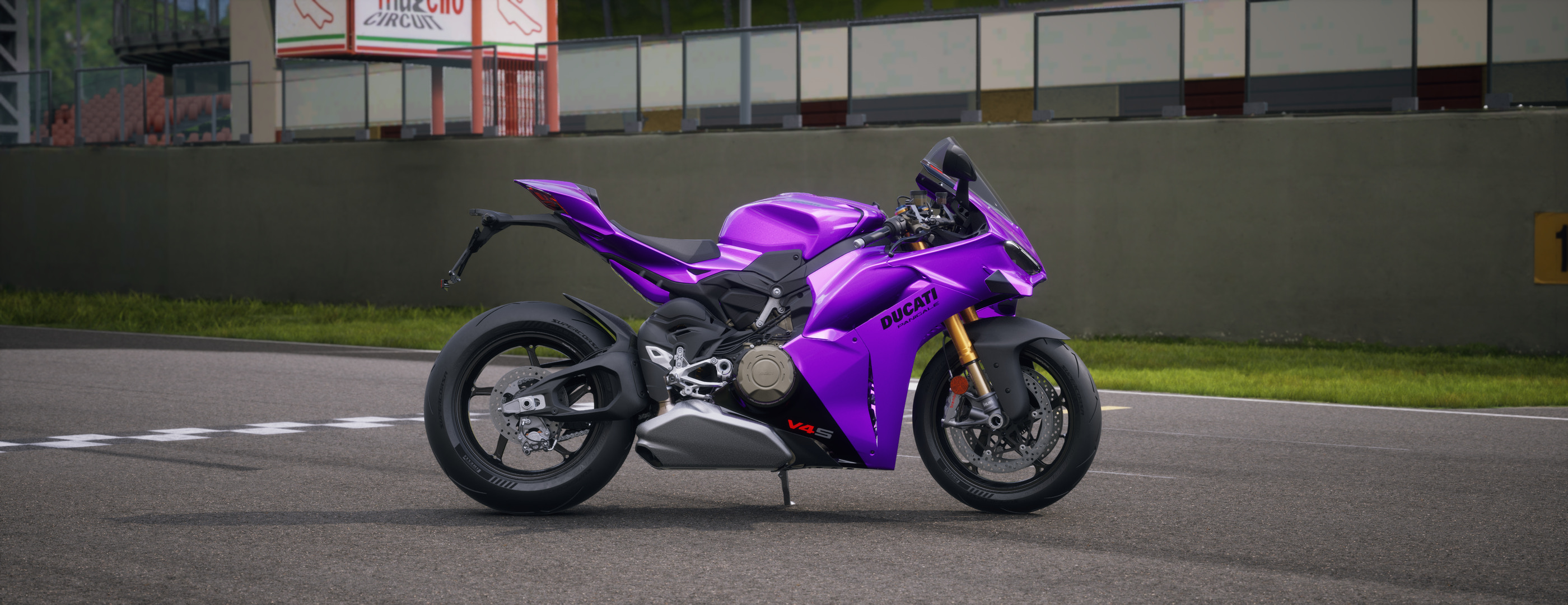

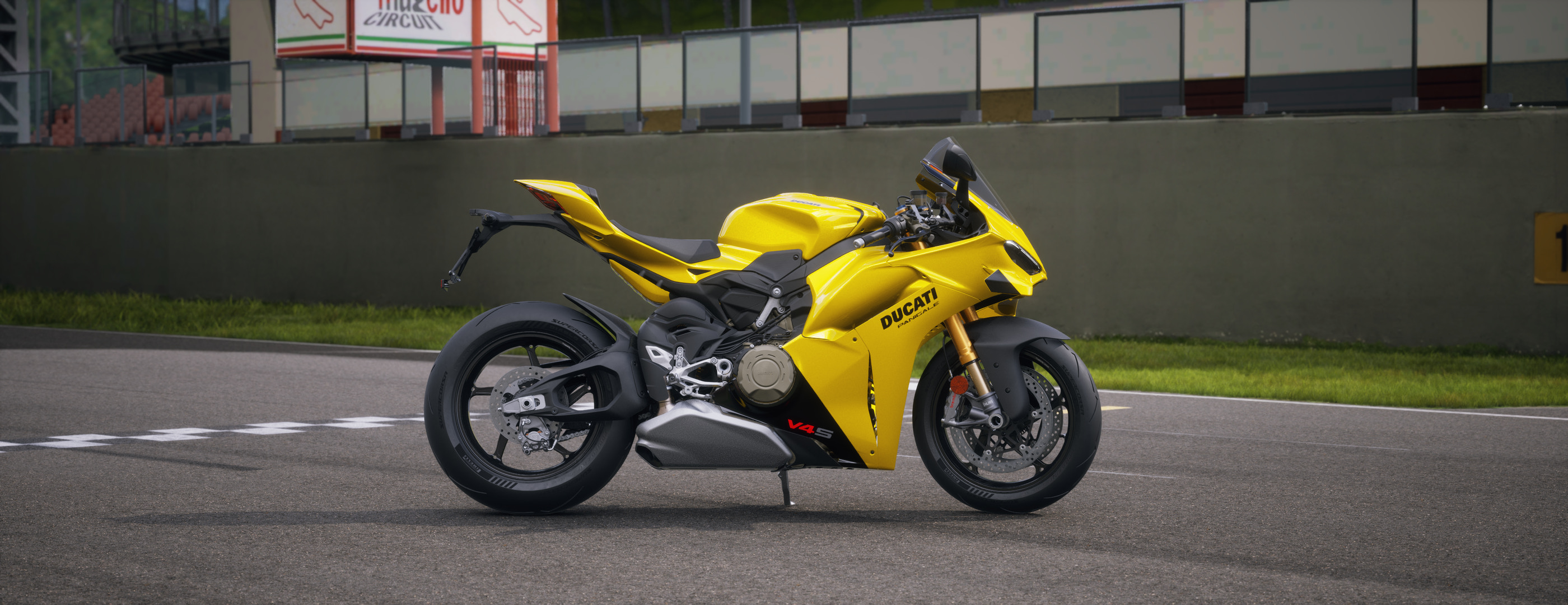

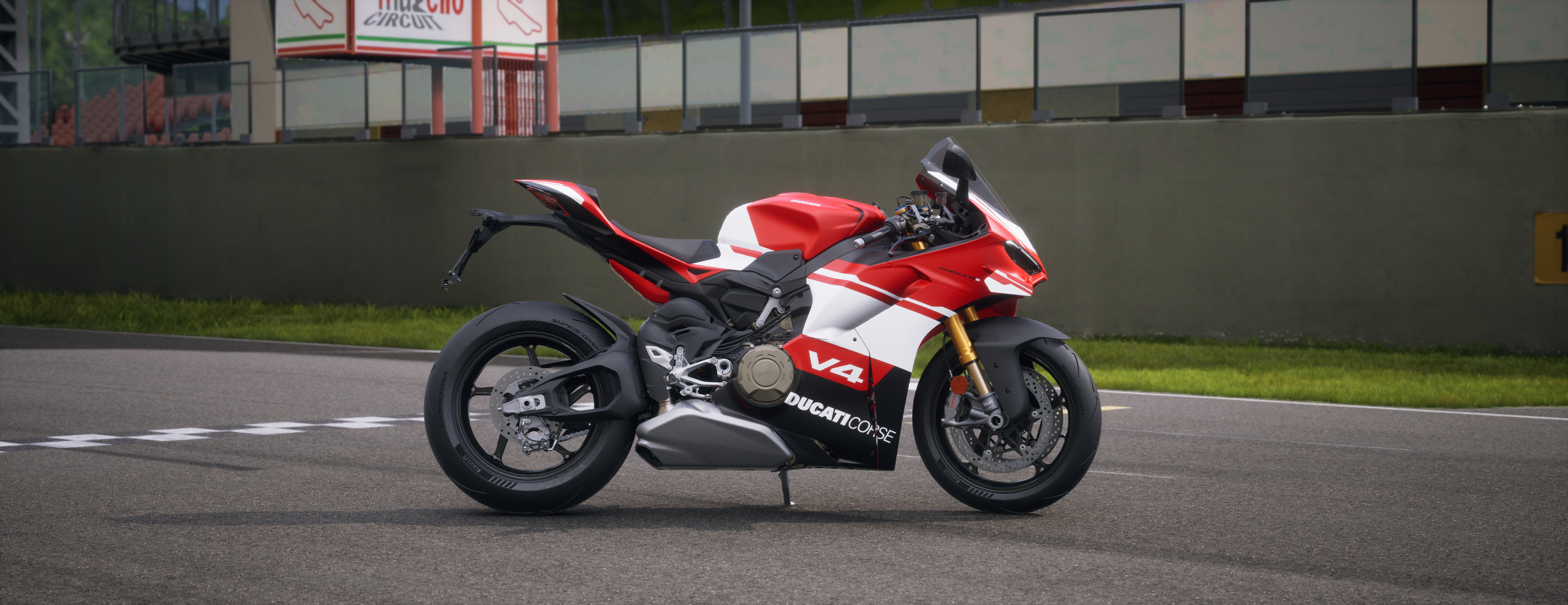

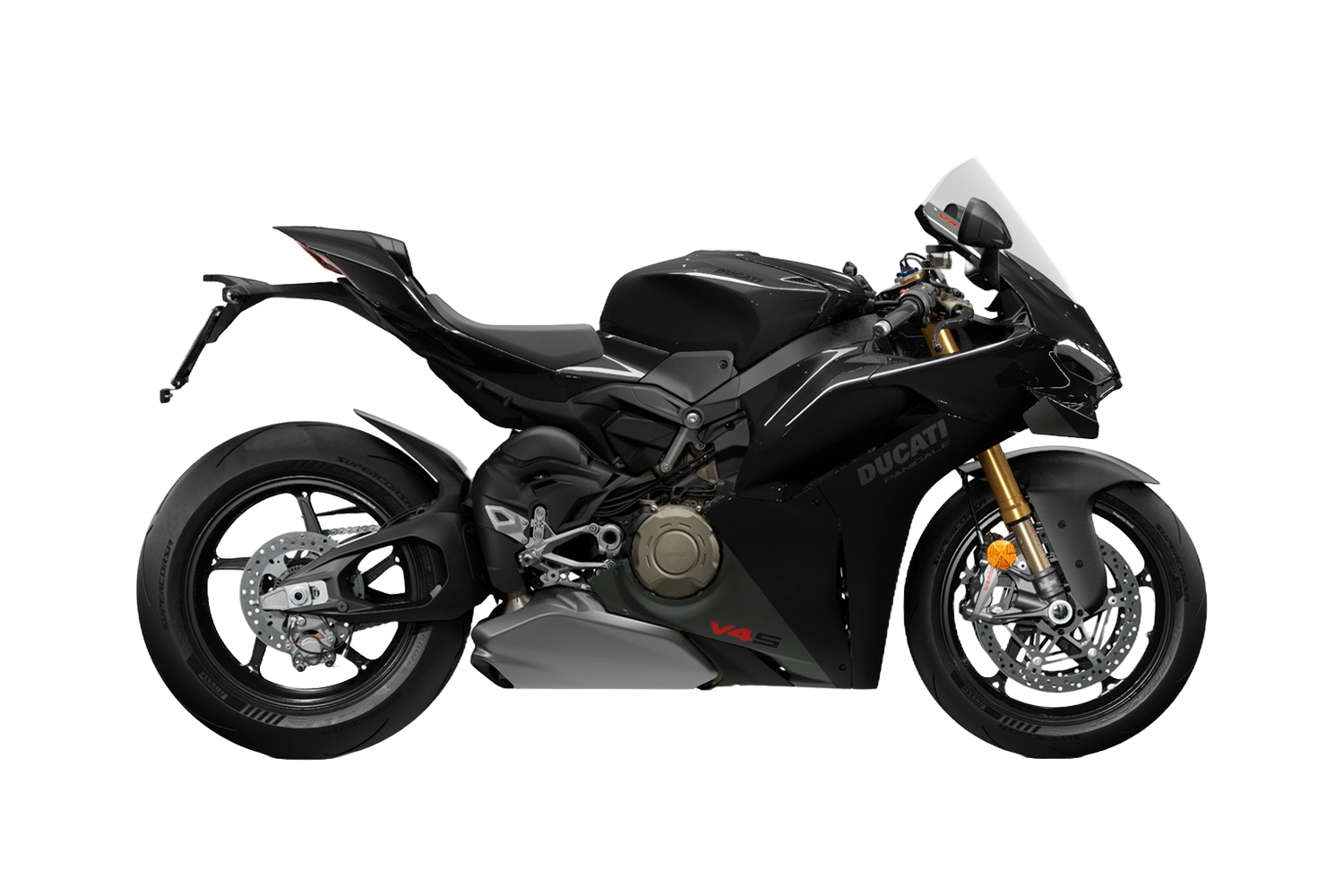

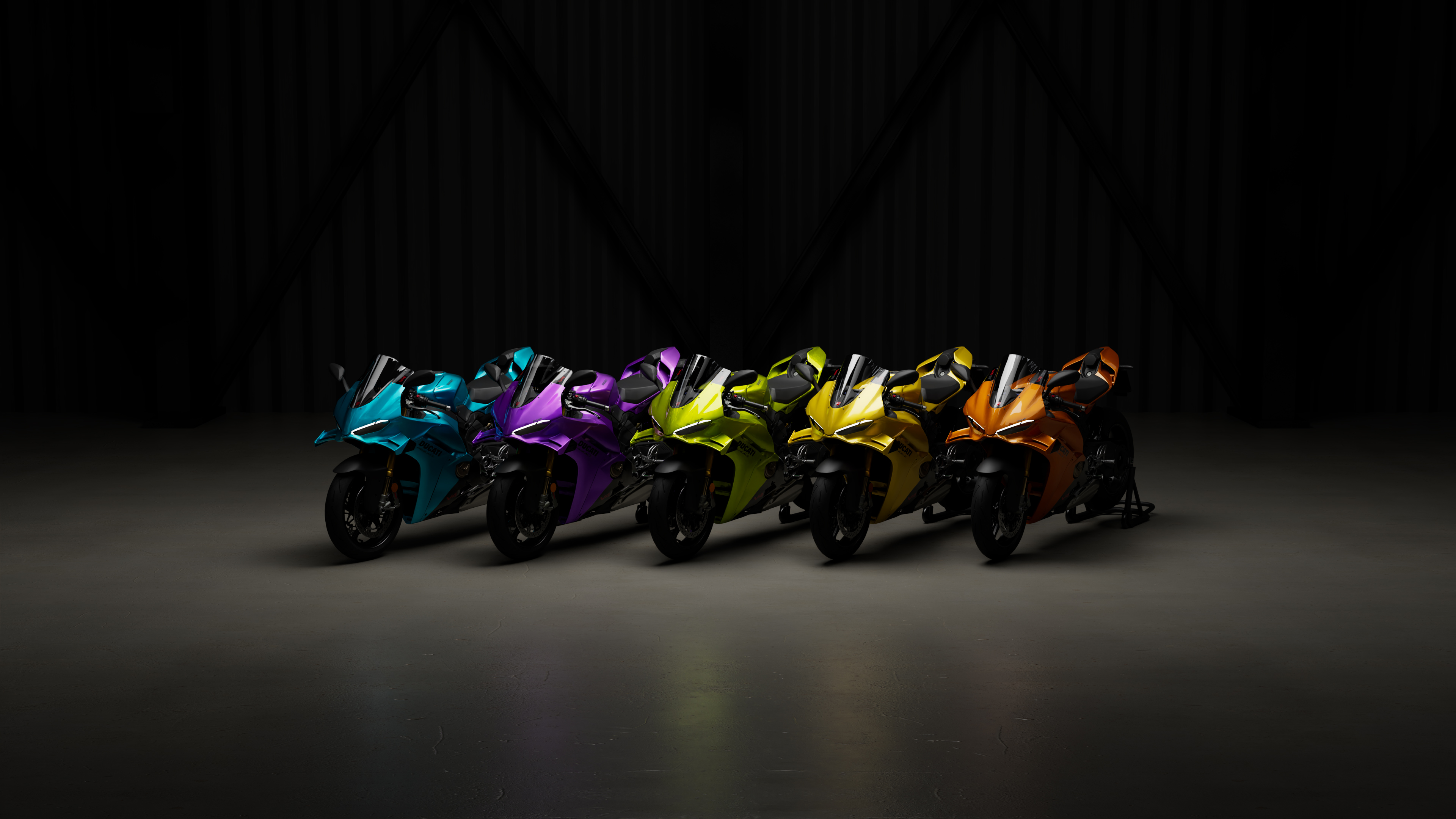

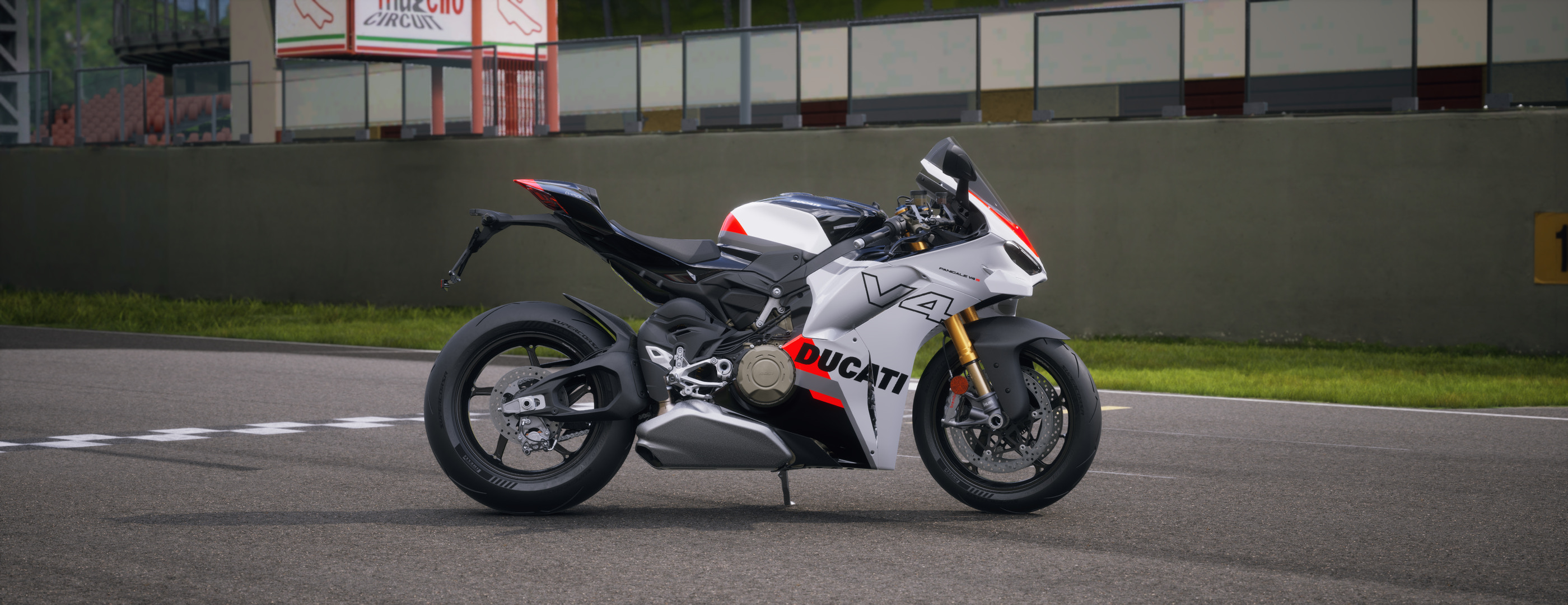

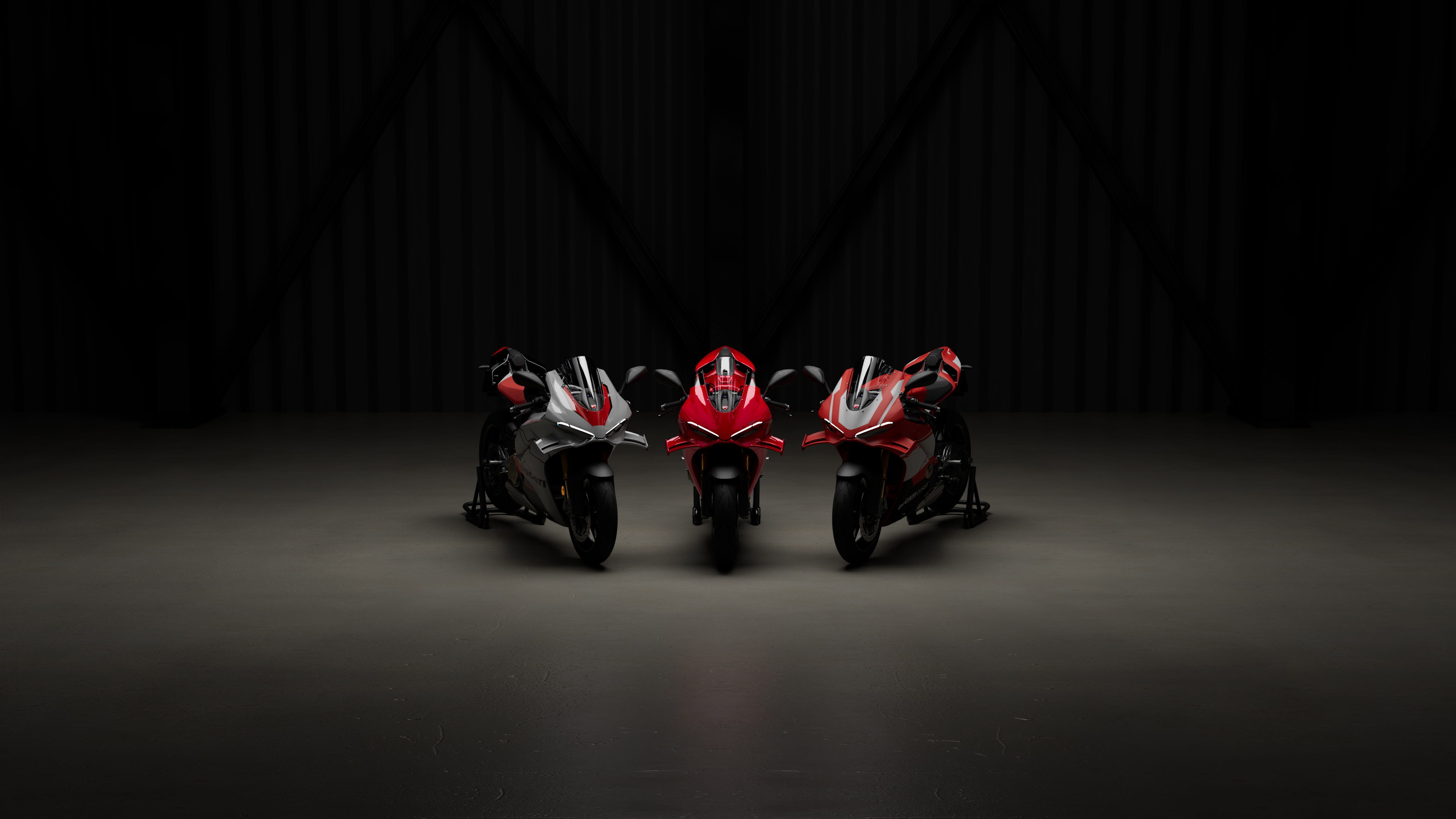

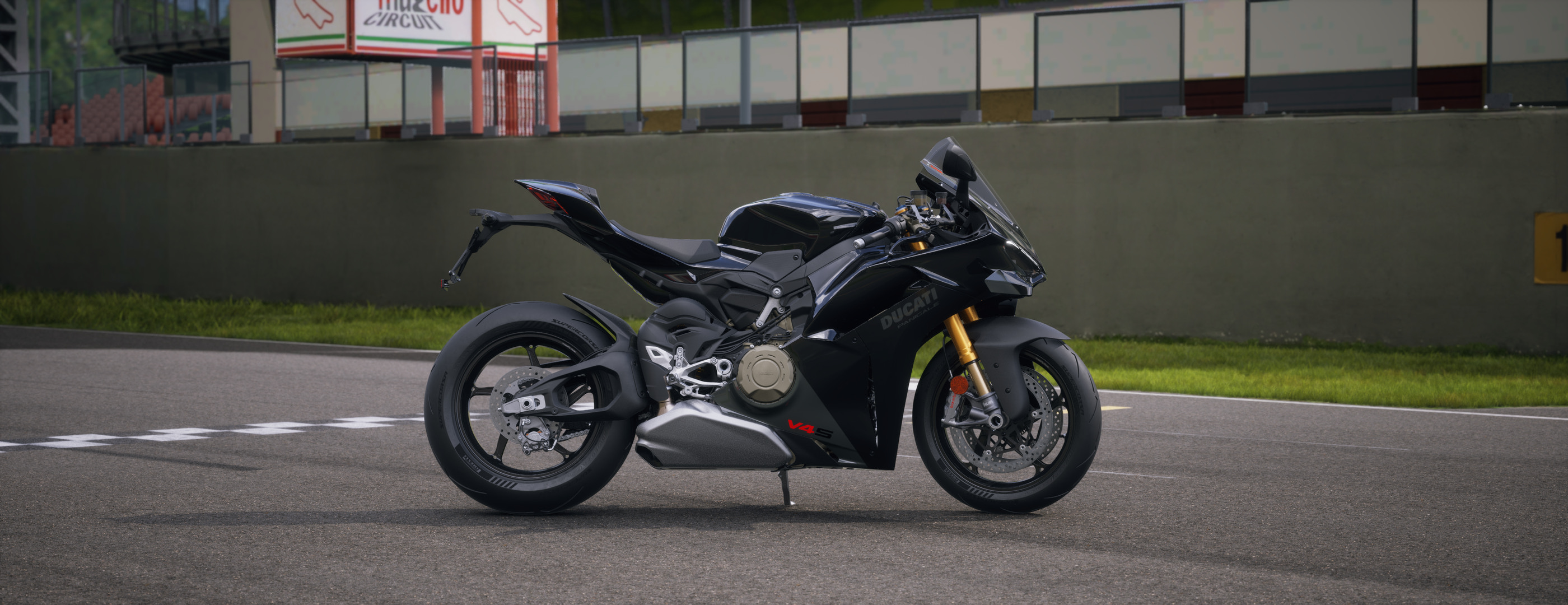

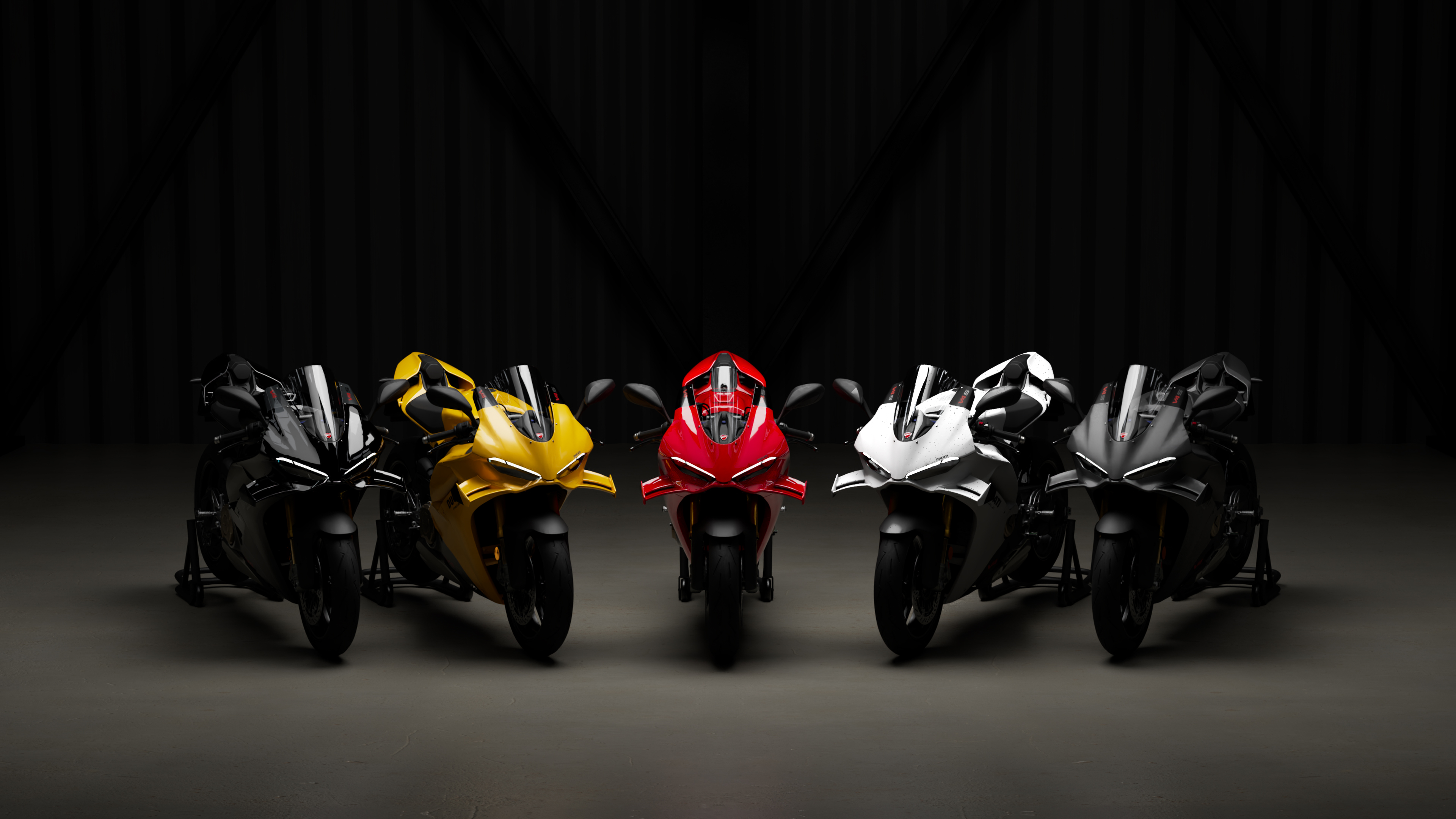

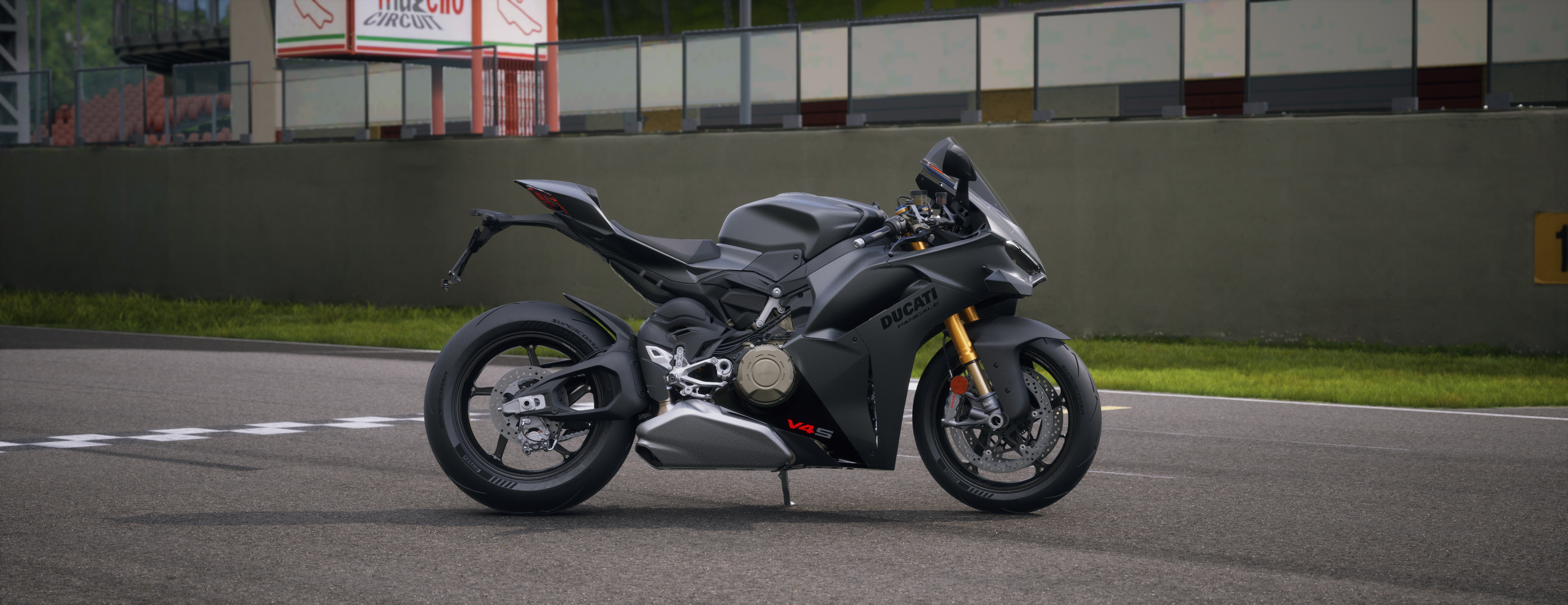

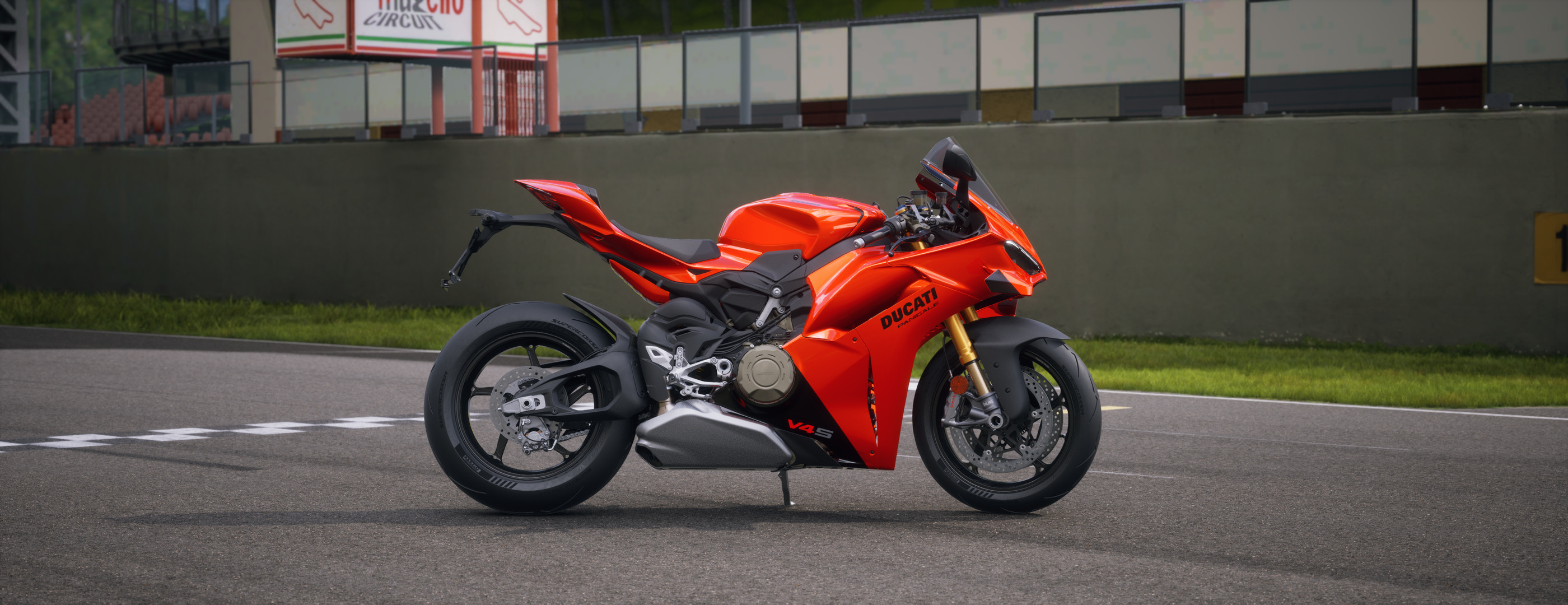

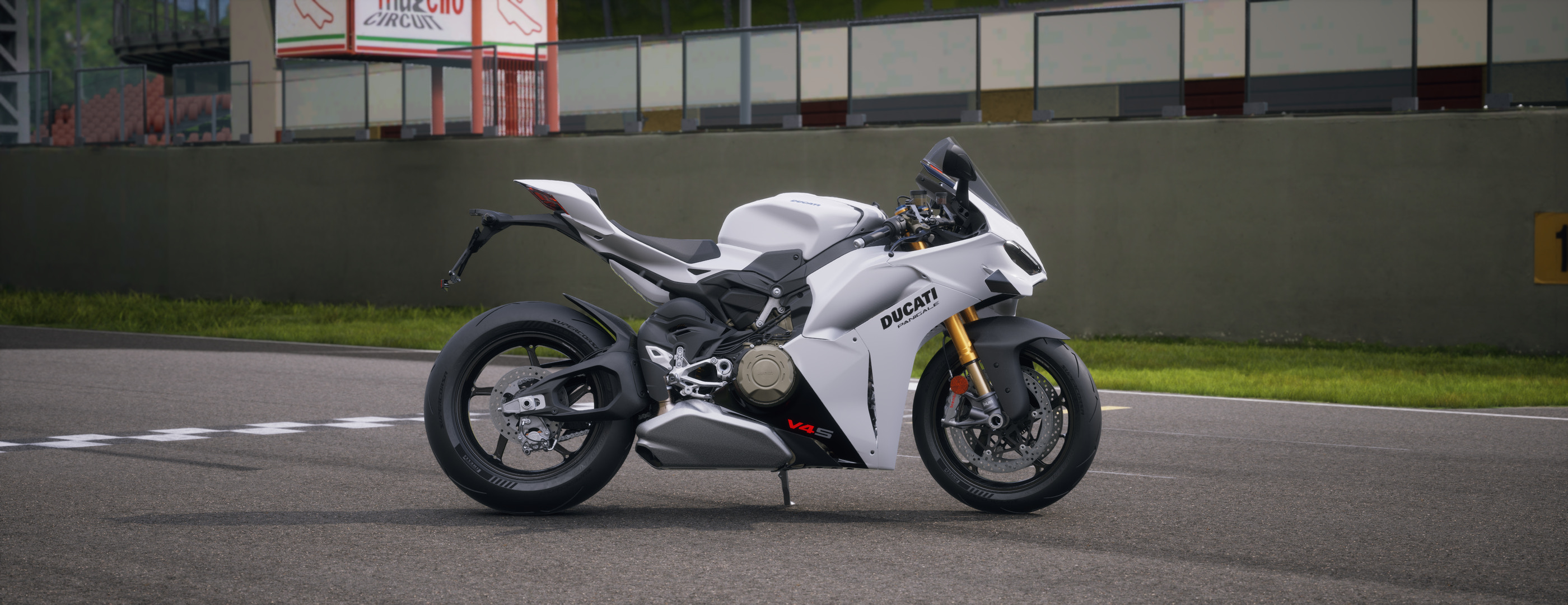

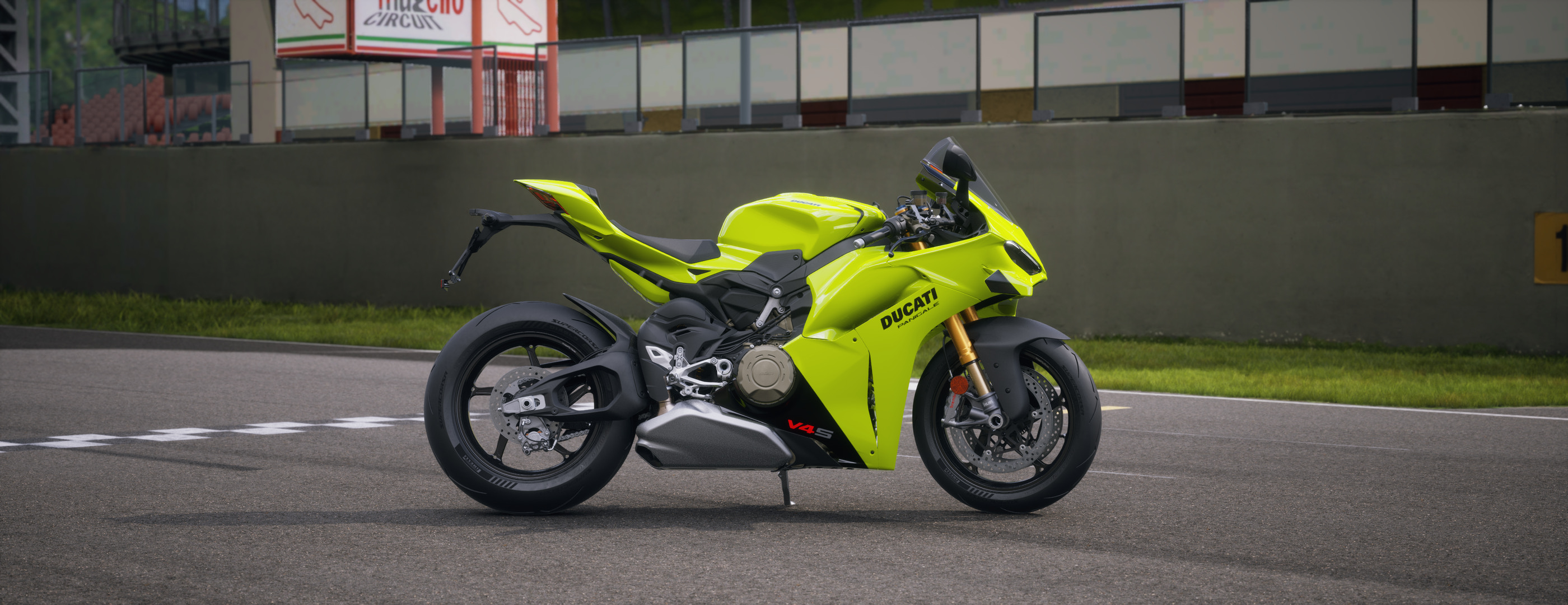

Choose your colour

£24,995.00

Overview

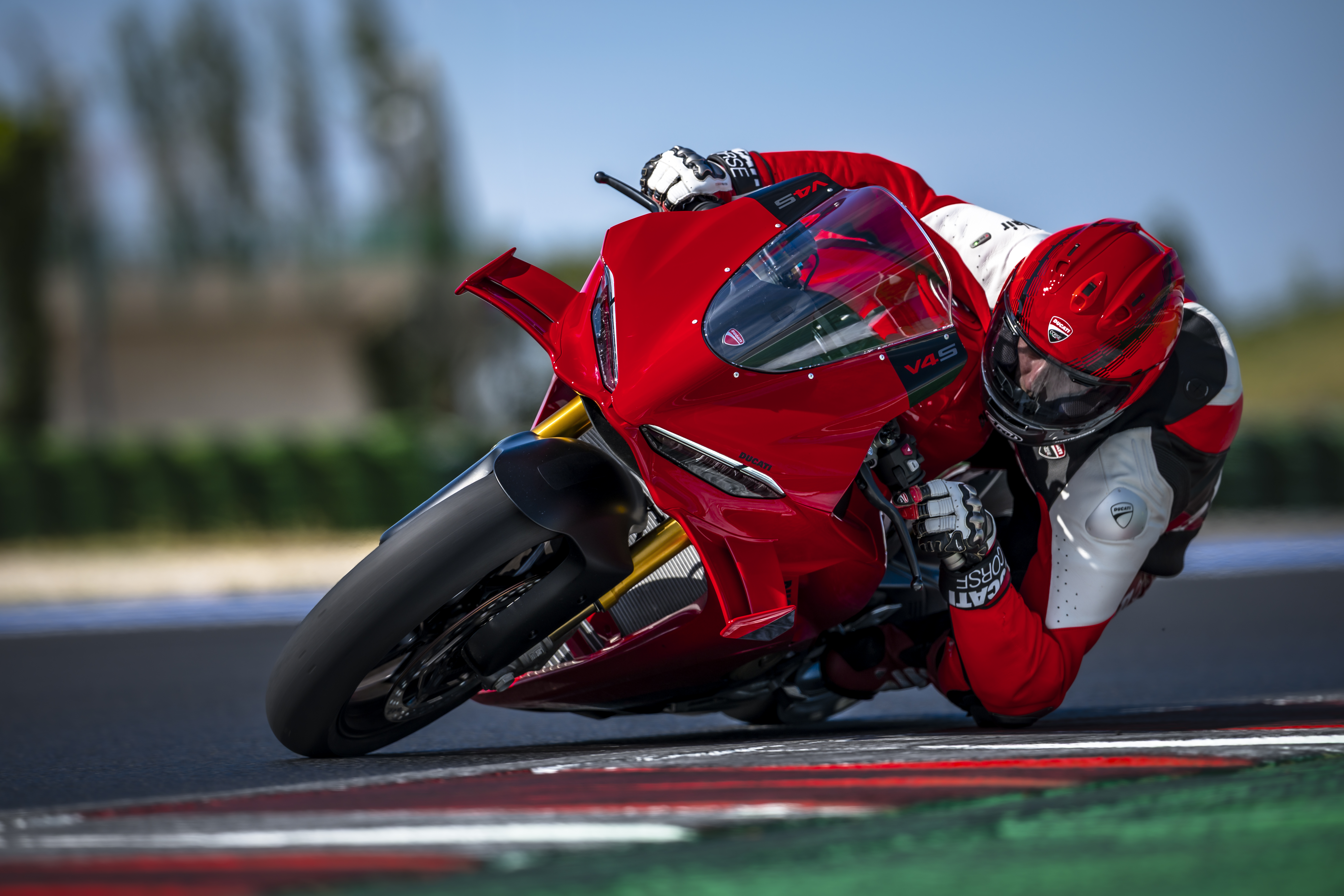

The Science of Speed

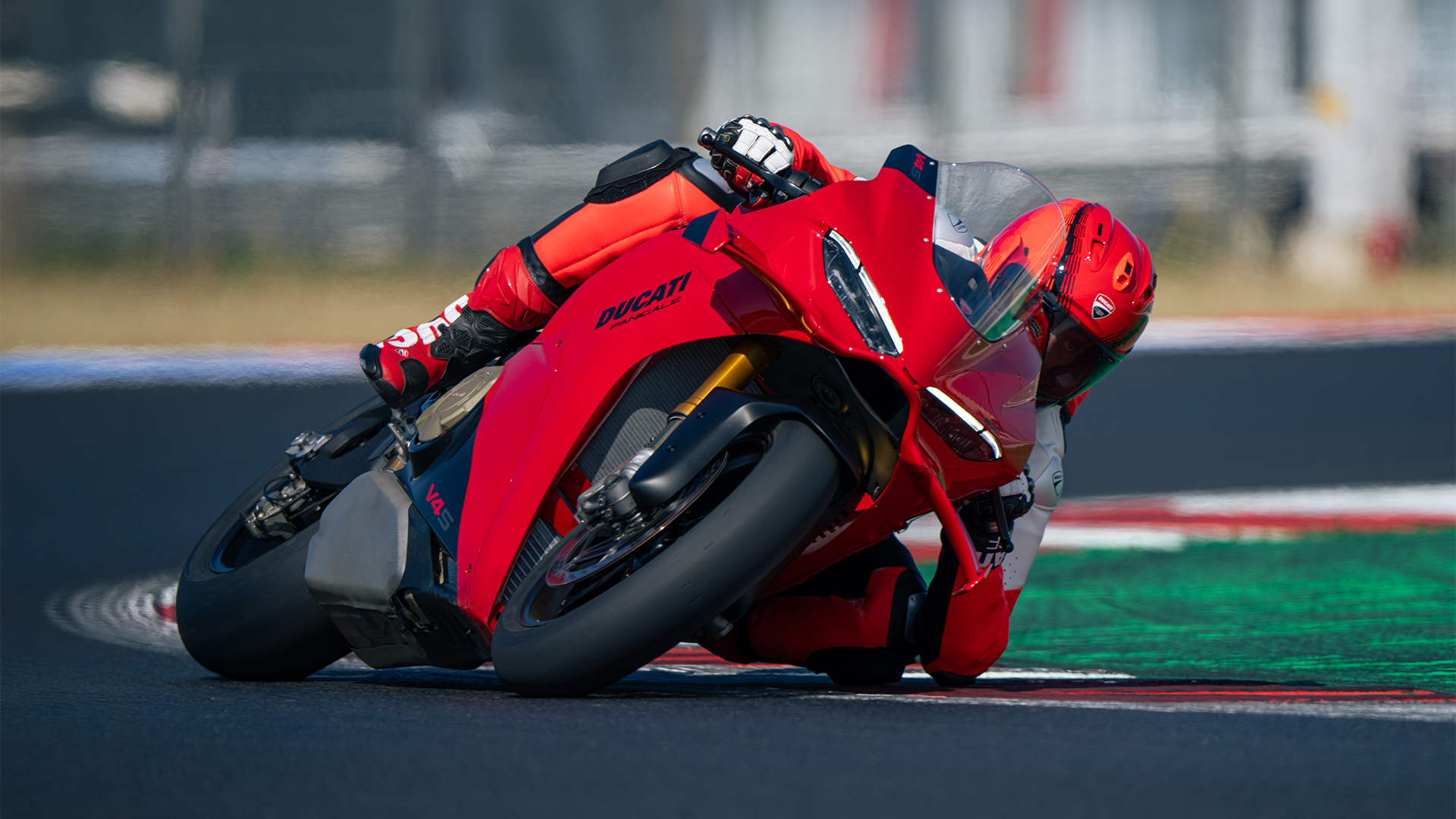

Track riding to the next level for amateurs and pros alike.

The 2020 version of the Ducati Panigale V4 S boosts performance even further and takes track riding to the next level for amateurs and pros alike. A series of refinements make for an easier, more user-friendly, less fatiguing ride while simultaneously making the bike faster not just on individual laps but over entire timed sessions. The Aero Pack provides enhanced airflow protection and improves overall vehicle stability, enhancing confidence. The Front Frame, instead, modifies stiffness to give better front-end ‘feel’ at extreme lean angles. Ducati and Ducati Corse engineers have crunched the feedback/data numbers from customers all over the world and Superbike World Championship events. Their analysis has led to a series of aerodynamic, chassis, electronic control and Ride by Wire mapping changes: designed to increase stability and turn-in speed, these changes make it easier to close corners and ensure riders enjoy more confident throttle control.

Concept

MY2020 changes

Built according to Ducati Corse specifications.

Major changes on the Ducati Panigale V4 S MY2020 chassis have seen the introduction of the Front Frame. Built according to Ducati Corse specifications, the latter features a special suspension set-up with a higher barycentre, an increased chain pull angle and improved use of suspension travel. Thanks to these modifications, the bike is easier to lay into the corner when you ease off the brakes, gets to the apex faster, soaks up any pits or ripples more effectively and behaves more neutrally out of the corner.

Design

Aero Fairing by Ducati Corse

Plexiglas screen, nose fairing and larger lateral fairings, more efficient lateral vents for radiator through-air and Aerofoils

Co-developed by Ducati Corse and the Ducati Style Center, the Ducati Panigale V4 S MY2020 aerodynamics package now mirrors that of the Panigale V4 R. The result; fairings that – in true Panigale style – meet official Ducati Superbike requirements in full. As in MotoGP, aerodynamic development involved a series of preliminary CFD (Computational Fluid Dynamics) studies, followed by optimisation on a full-scale wind tunnel model. The new Plexiglas screen – higher and more angled – provides better airflow protection for riders, especially in the helmet and upper shoulder areas. The screen works in concert with a new nose fairing that is higher and wider (+15 mm per side) in the arm-shield zone to reduce arm and shoulder-induced drag on the straights. The lateral fairings have been widened considerably (+38 mm per side) with the dual aim of reducing on-rider airflow impact and maximising aerofoil efficiency. On the sides, the stylish air vents of the Panigale V4 Shave been replaced by more efficient ones that increase air through-speeds on water and oil radiators by 6% and 16% respectively. Panigale V4 S is equipped with 3-spoke forged aluminium alloy wheels.

Engine

New changes for top performances

Specially developed Ride by Wire system mappings with several torque delivery control settings.

The Ducati Panigale V4 S MY2020 features new, specially developed Ride by Wire system mappings with several torque delivery control settings. Track-dedicated RbW mapping aligns rider demand with delivered torque more closely, resulting in smoother, more predictable throttle response.

Specification

Specification

General

Instruments Last generation digital unit with 5" TFT colour display. Ducati Power Launch (DPL), Ducati Quick Shift (DQS) up/down EVO, Full LED lighting with Daytime Running Light (DRL), Ducati Electronic Suspension (DES) EVO with Ohlins suspension and steering damper, Quick adjustment buttons, Lithium-ion battery, Auto-off indicators, Marchesini aluminium forged wheels
Warranty 24 months unlimited mileage
Service Interval 12,000 km (7,500 mi) / 12 months
Valve Clearance 24,000 km/15,000 miles

Chassis

Frame Monocoque Aluminium with optimised stiffness
Wheelbase 1.469 mm (57.8 in)
Rake 24.5°
Trail 100 mm (3.94in)
Front Suspension Öhlins NIX30 43 mm fully adjustable fork with TiN treatment. Electronic compression and rebound damping adjustment with Öhlins Smart EC 2.0 event-based mode
Front Wheel 3-spokes forged aluminum alloy 3.50" x 17"
Front Wheel Travel 120 mm (4.7 in)
Front Brake 2 x 330 mm semi-floating discs, radially mounted Brembo Monobloc Stylema® (M4.30) 4-piston callipers with Bosch Cornering ABS EVO
Front Tyre Pirelli Diablo Rosso Corse 2 - 120/70 ZR17
Rear Suspension Fully adjustable Ohlins TTX36 unit. Electronic compression and rebound damping adjustment with Öhlins Smart EC 2.0 event-based mode. Aluminium single-sided swingarm
Rear Wheel 3 spokes forged aluminum alloy 6.00" x 17"
Rear Wheel Travel 120 mm (4.7 in) - 130 mm (5.1 in)
Rear Brake 245 mm disc, 2-piston calliper with Bosch Cornering ABS EVO
Rear Tyre Pirelli Diablo Rosso Corse 2 - 200/60 ZR17
Fuel Capacity 16 l - 4.23 gallon (US)
Dry Weight 178 kg (392 lb)
Wet Weight 199 kg (439 lb)
Seat Height 845 mm (33.3 in)
Max Height
Max Length

Engine

Type Desmosedici Stradale 90° V4, 16 Desmodromic valves. Driven by chain.
Displacement 1,103
Bore And Stroke 81 x 53.5 mm
Compression Ratio 14:01
Power 157.5 kW (214 hp) @ 13,000 rpm
Torque 124.0 Nm (91.5 lb-ft) @ 10,000 rpm
Fuel Delivery Four oval throttle bodies with an equivalent diameter of 52 mm, connected to variable length intake manifolds - 2 injectors per cylinder.Semi-dry sump lubrication with four oil pumps: 1 delivery and 3 return
Exhaust 4-2-1-2 with 2 catalyt converters and 2 lambda probes
Emissions Euro 4
Gearbox 6 speeds with Ducati Quick Shift (DQS) up/down Evo 2
Ratio 1=38/14 2=36/17 3=33/19 4=32/21 5=30/22 6=30/24
Primary Drive Straight cut gears; Ratio 1.80:1
Final Drive Chain; Front sprocket 16; Rear sprocket 41
Clutch Slipper and self-servo wet multiplate clutch with hydraulic control
Finance

Finance Example

Based on Ducati Panigale V4S, Red

Hire Purchase (HP)

Cash Price £24,995.00
Registration Fee £55.00
Road Fund Fee £93.00
Deposit £5,028.60
Total Credit £20,114.40
Total Payable £28,262.52
Initial Payment £484.04
Monthly Payment £484.04
Final Payment £484.04
Agreement Duration 48 months
Representative Apr 7.5%
Interest Rate 7.48%
Valid From 28/11/2020
Valid To 12/12/2020

Personal Contract Purchase (PCP)

Cash Price £24,995.00
Registration Fee £55.00
Road Fund Fee £93.00
Deposit £5,028.60
Total Credit £20,114.40
Total Payable £29,908.99
Initial Payment £264.37
Monthly Payment £264.37
Final Payment £12,455.00
Agreement Duration 48 months
Representative Apr 7.5%
Interest Rate 7.49%
Valid From 28/11/2020
Valid To 12/12/2020

The Personal Contract Purchase finance plan shown above is available through Black Horse Ltd, St William House, Tresillian Terrace, Cardiff CF10 5BH. Credit is subject to status and is only available to UK residents aged 18 and over.

Representative Example is based on an annual mileage of 4000 .

With Personal Contract Purchase (PCP), once you have paid all of the regular monthly payments you have the option to

(1) Return the vehicle and not pay the Optional Final Payment. If the vehicle has exceeded the maximum agreed mileage, a charge per excess mile will apply of 6.0 + VAT pence per mile. If the vehicle is in good condition (fair wear and tear accepted) and has not exceeded the maximum agreed mileage you will have nothing further to pay;
(2) Pay the Optional Final Payment to own the vehicle or;
(3) Part exchange the vehicle subject to settlement of your existing credit agreement; new credit agreements are subject to status.

Warranty

Ducati Ever Red

The Ducati Factory Warranty Extension

We’ve got it covered.

Ever Red is only available to be purchased at time of first registration of a new Ducati motorcycle.

This warranty extension covers the whole bike for an additional one or two years and has unlimited mileage limitation. (excluding wear and tear parts, aesthetic defects, accessories or battery).

Roadside assistance is also extended for the duration of the extension period selected.

Both warranty and extension are covered Europe wide.

The warranty stays with the bike when sold or transferred thus adding to residual value.

Prices valid from 01/01/2020 and are inclusive of VAT.

N.B. All versions of Multistrada come with a 4 year warranty included.

Model 12 months 24 months
Panigale V4 £449.00 £625.00
Streetfighter V4 £449.00 £625.00
Diavel £299.00 £445.00
XDiavel £299.00 £445.00
Panigale V2 £299.00 £445.00
Supersport £199.00 £295.00
Hypermotard £199.00 £295.00
Monster £199.00 £295.00
Scrambler £199.00 £295.00
Terms and Conditions

With Ever Red warranty extension, your bike is entirely covered for manufacturing defects.

Ever Red warranty extension includes all features in line with the standard manufacturer warranty.

However, it does not include:

a) Malfunctions owing to improper maintenance, repair or lack of care for the bike (we remind you that the official Ducati maintenance plan must be respected for the standard or extended warranty to be valid).

b) Components subject to wear or deterioration as a result of the normal operation of the bike (for example: tyres, filters, lights, final drive, belts, flexible controls, spark plugs, friction components including the clutch and brake pads and discs).

c) Aesthetic damage to painted or chromed surfaces, also as a result of oxidation or atmospheric agents owing to environmental conditions or exceptional circumstances, or to irregular or incorrect washing of the bike.

d) Installation of components/accessories and modifications to the bike that are not approved by Ducati.

e) The bike’s battery.

f) Bikes used in any kind of sporting competition.

g) Bikes used for commercial or rental services.

In the event of any query regarding your warranty please contact us here at Ducati Norwich 01508 471919
