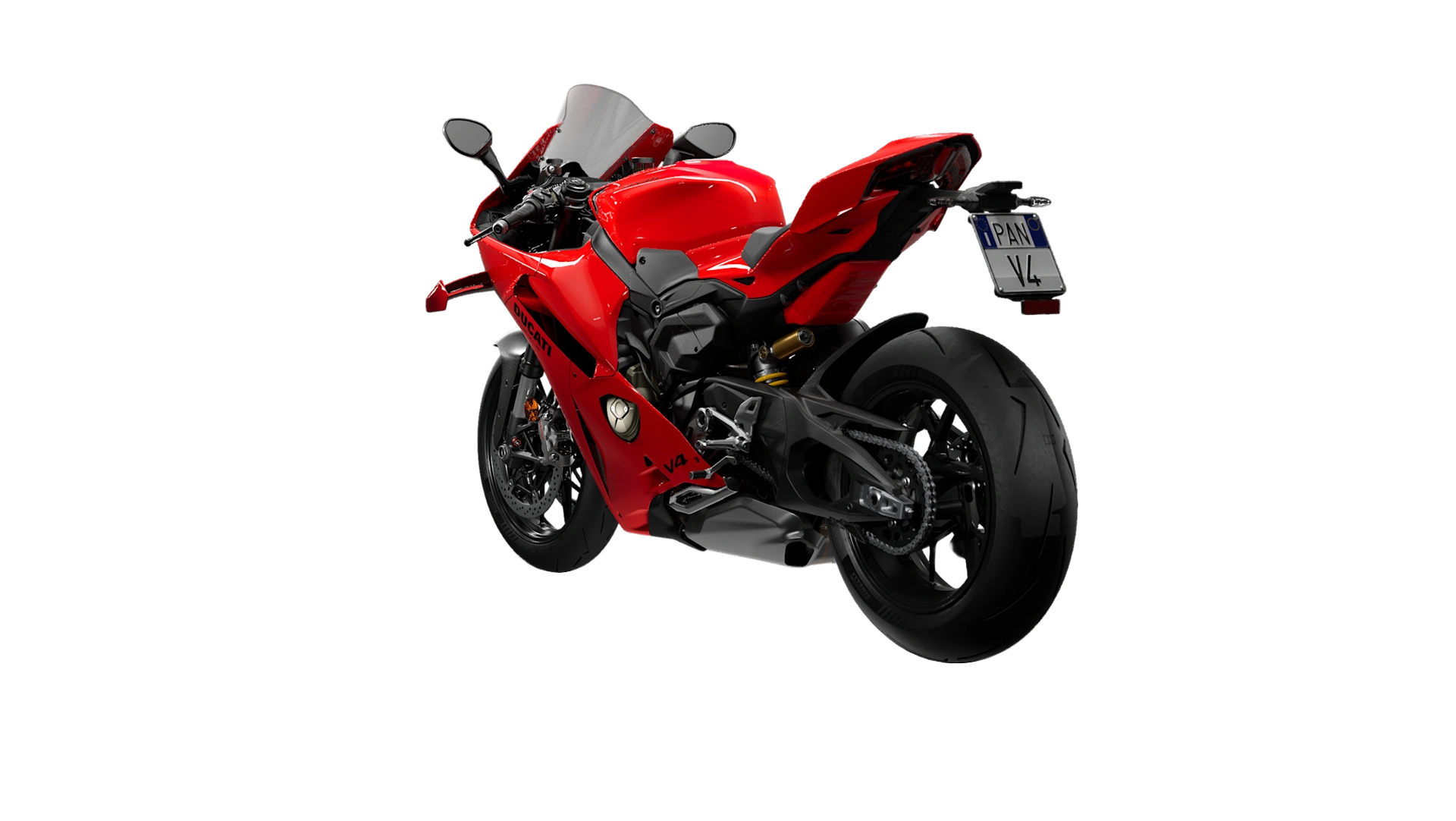

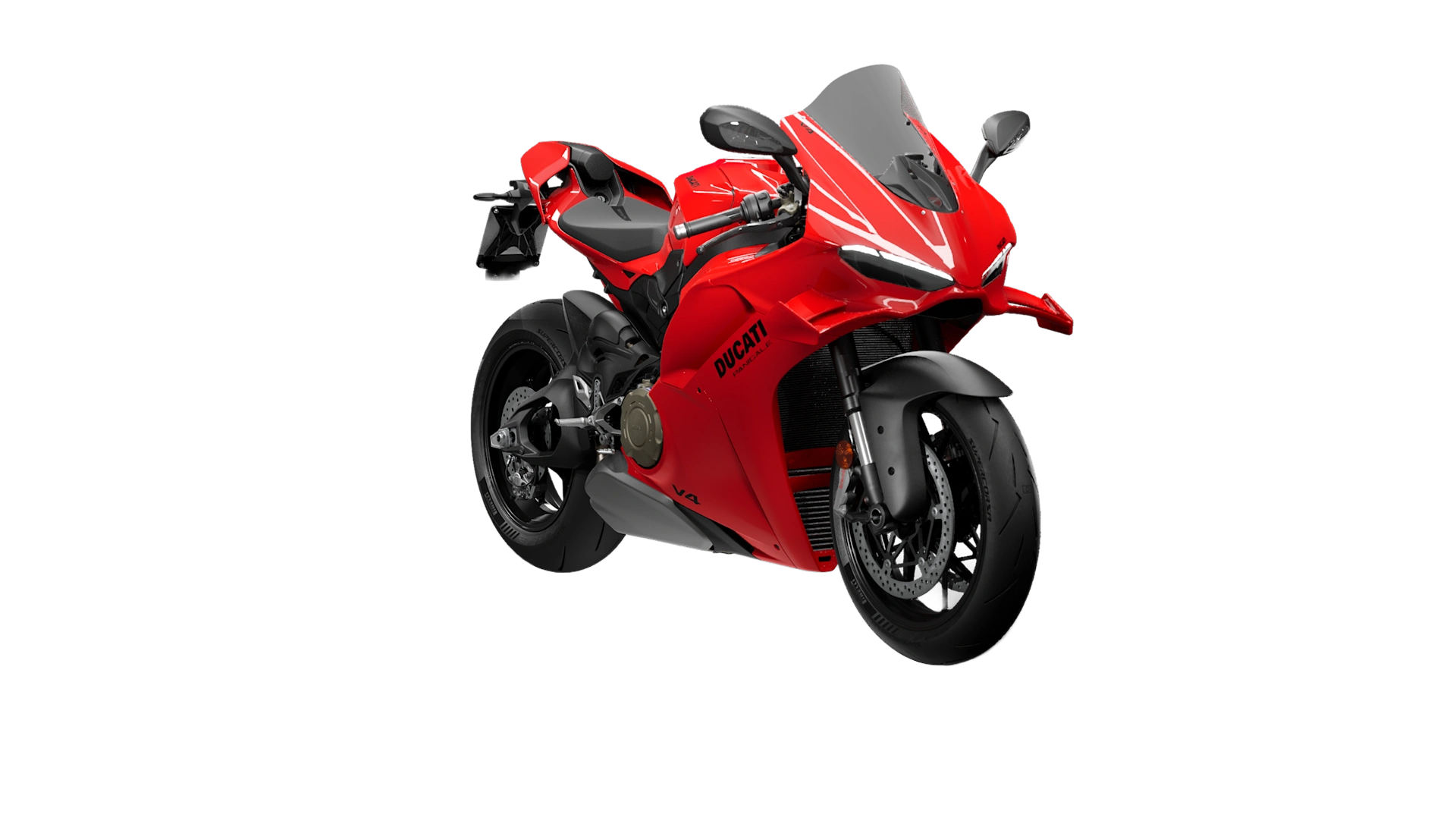

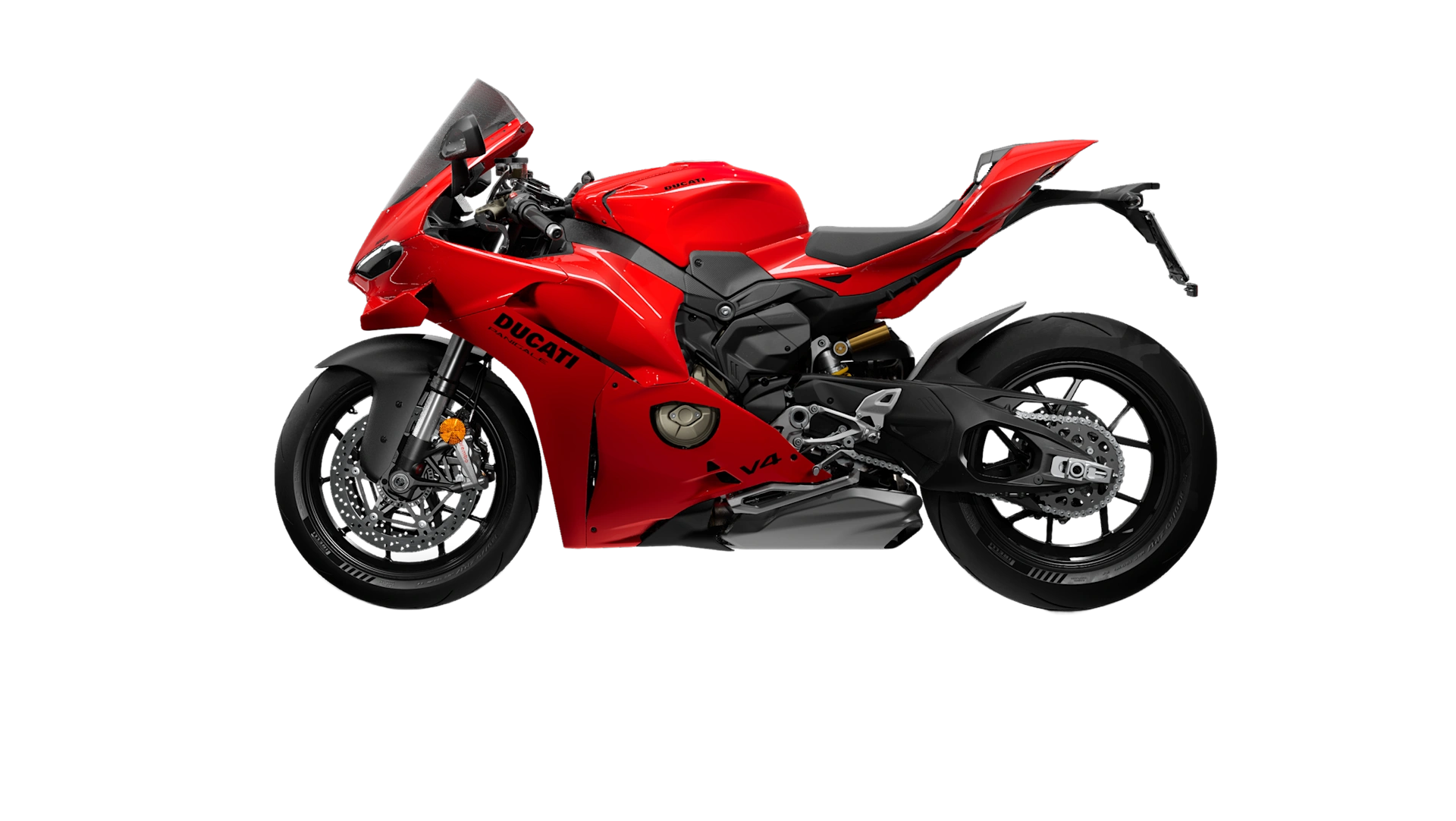

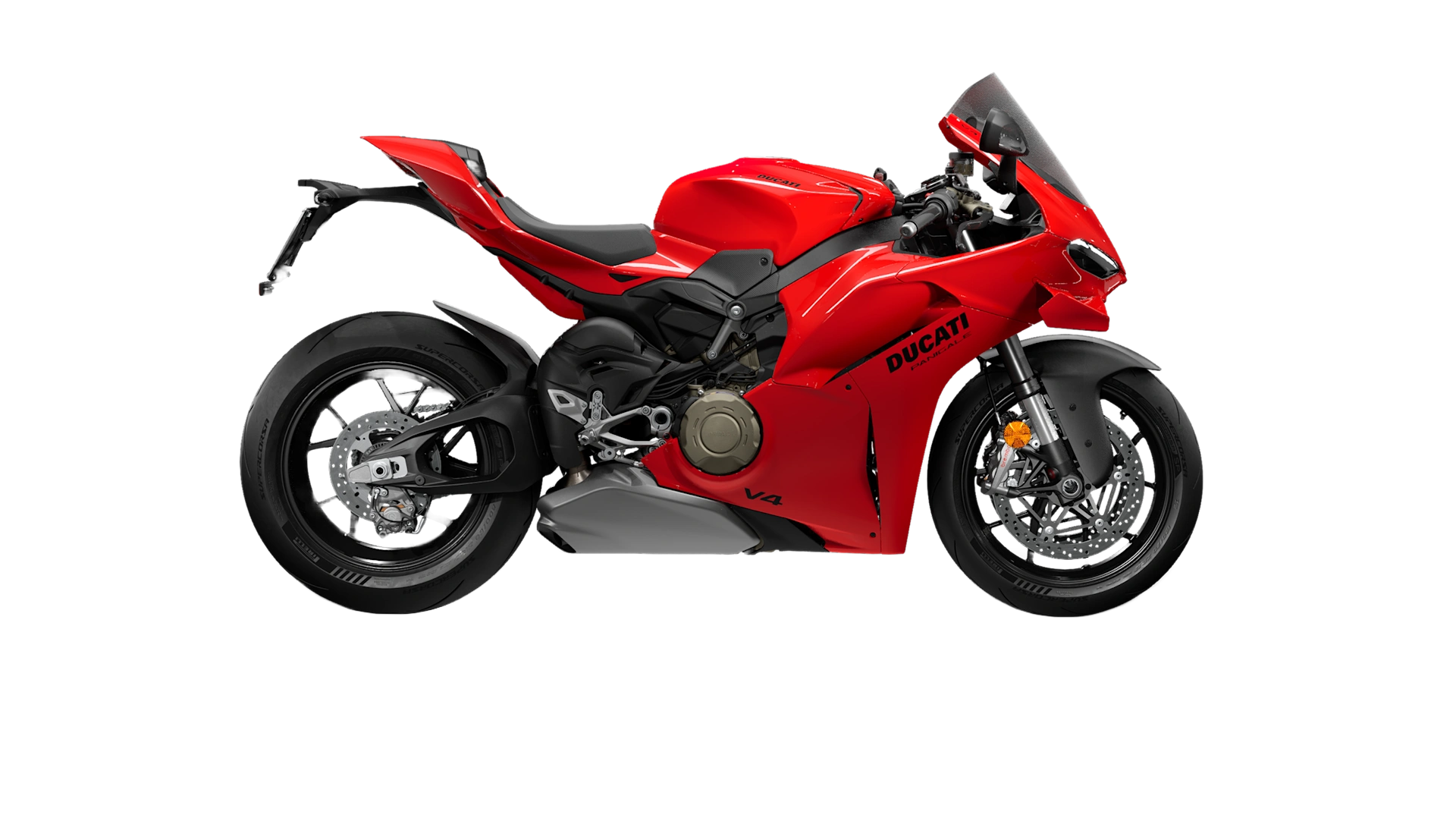

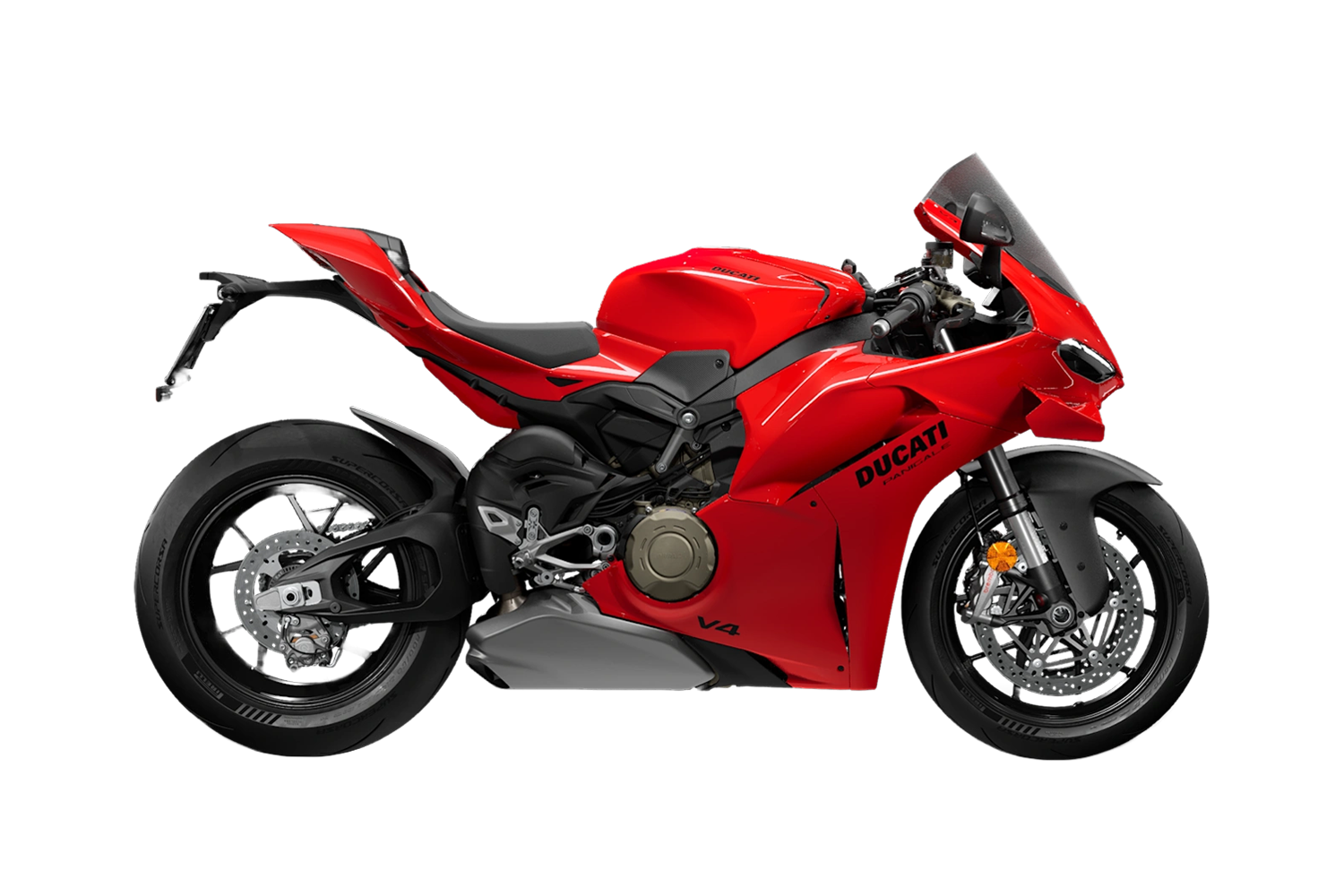

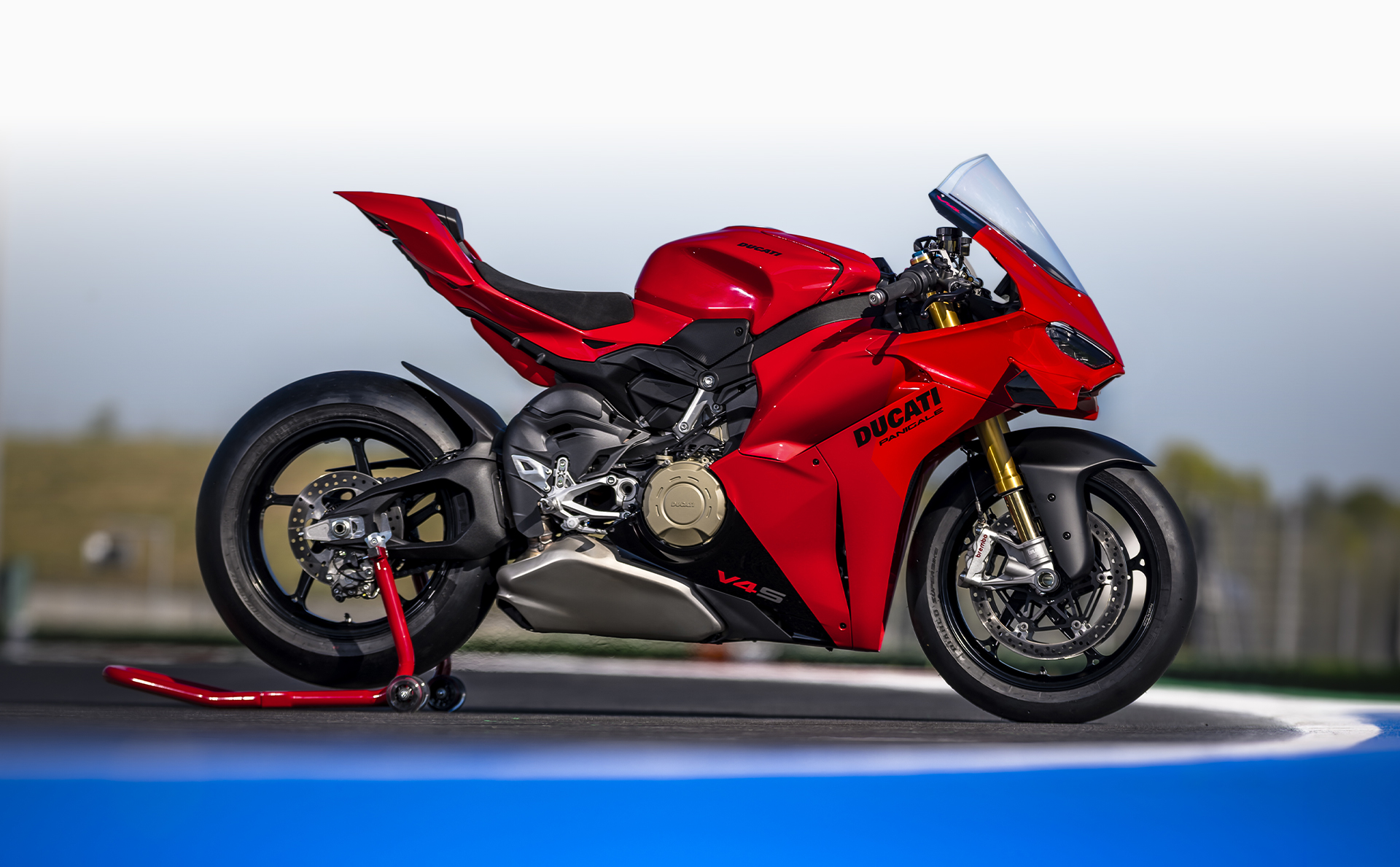

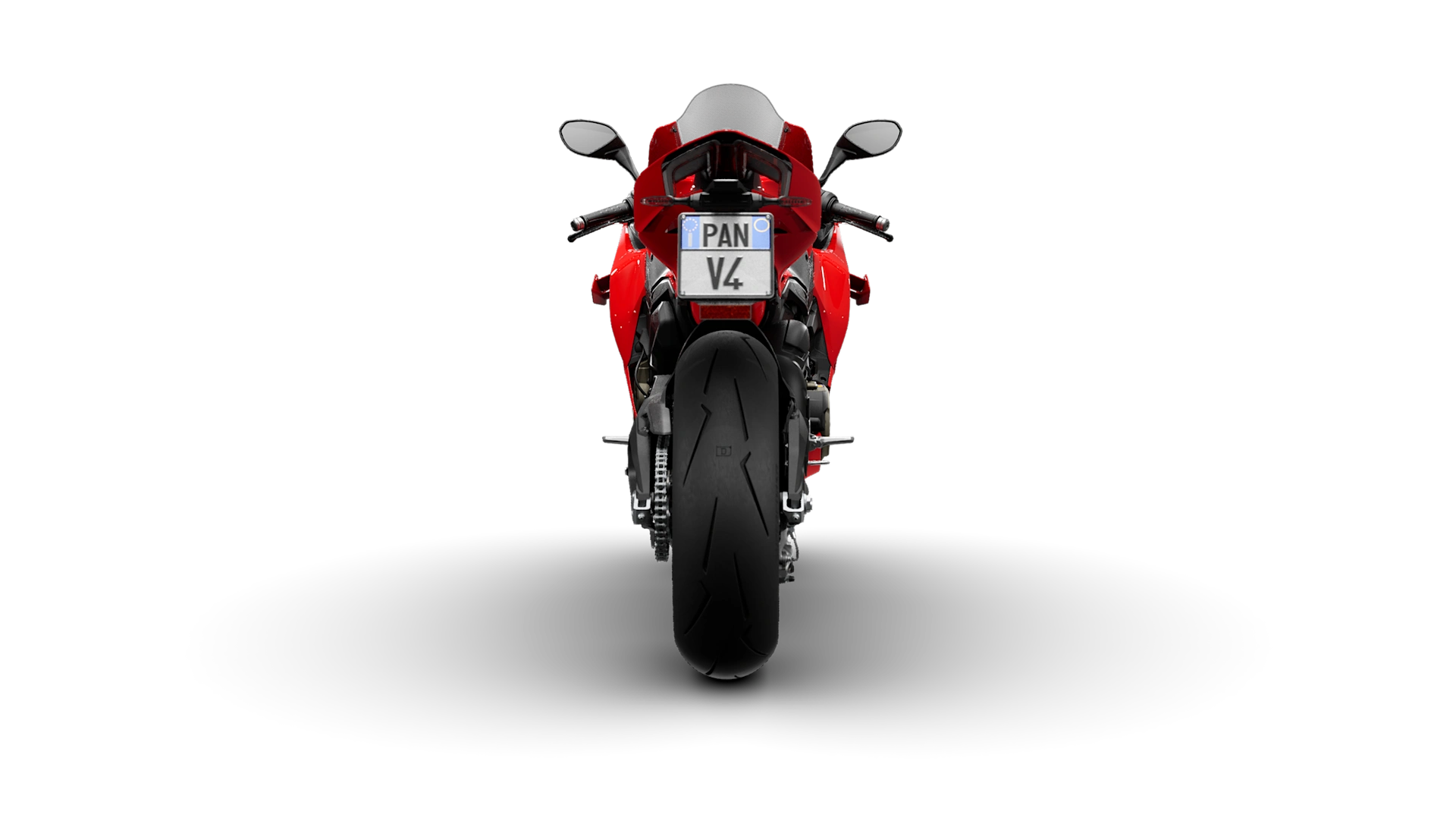

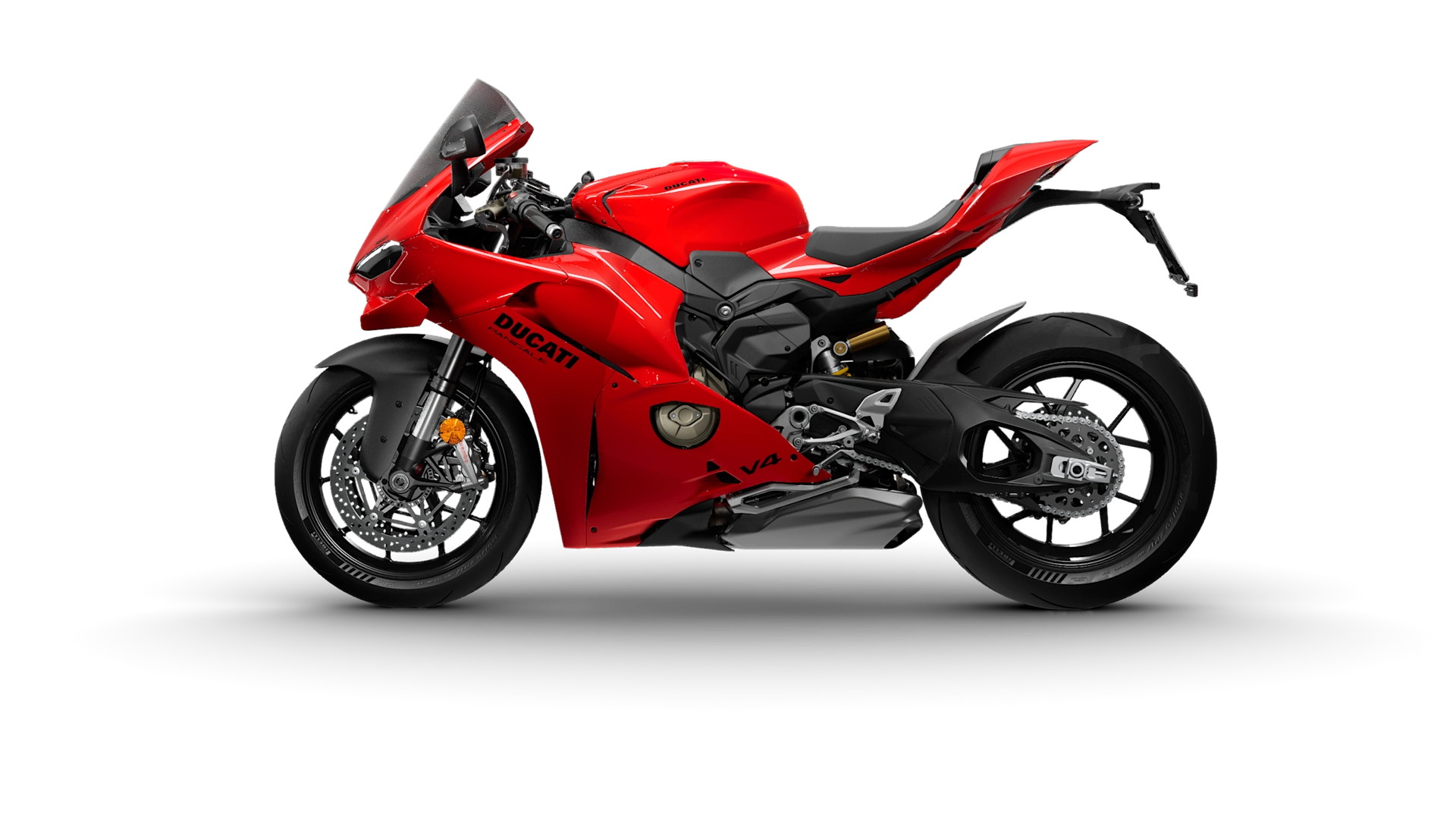

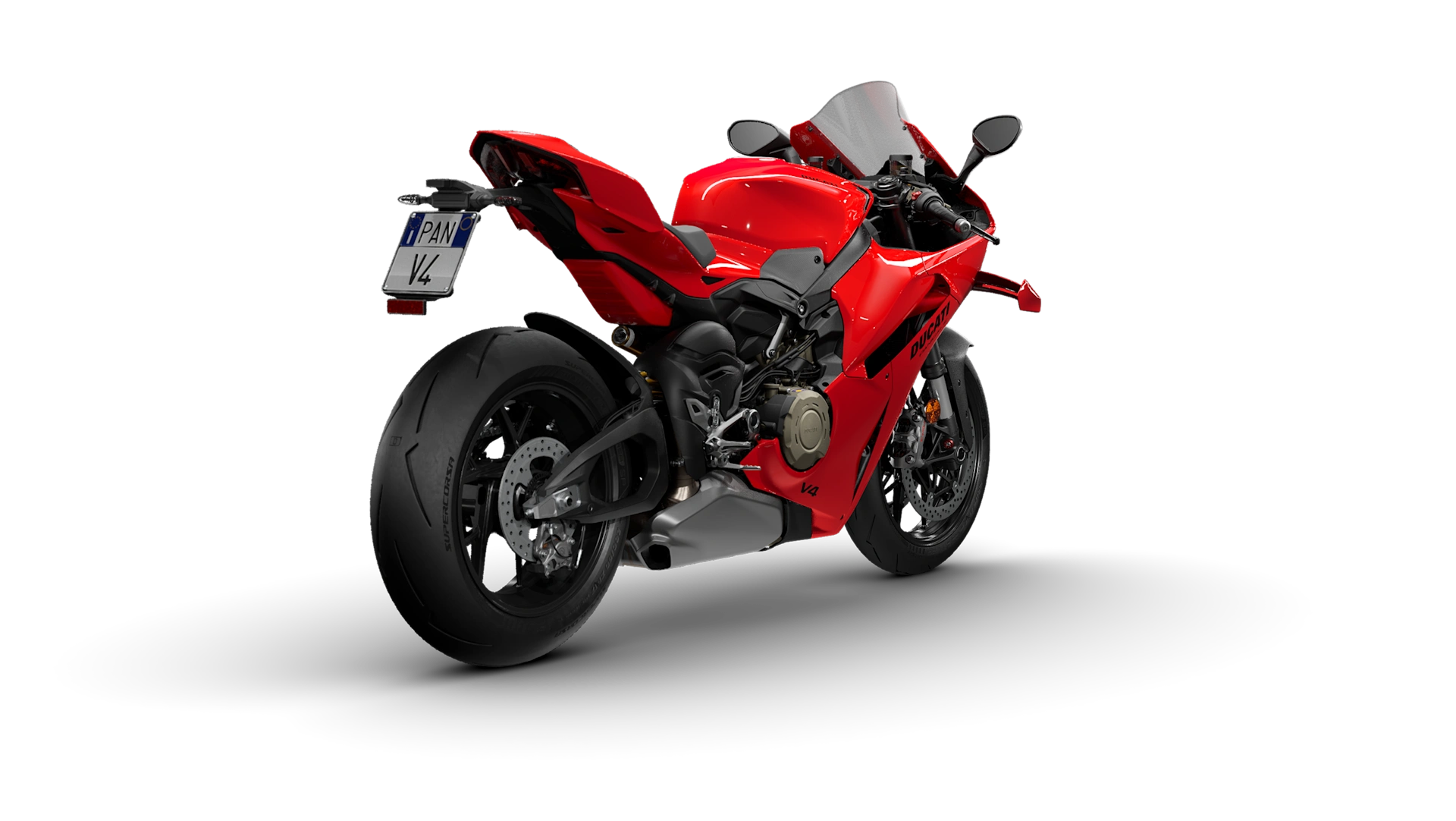

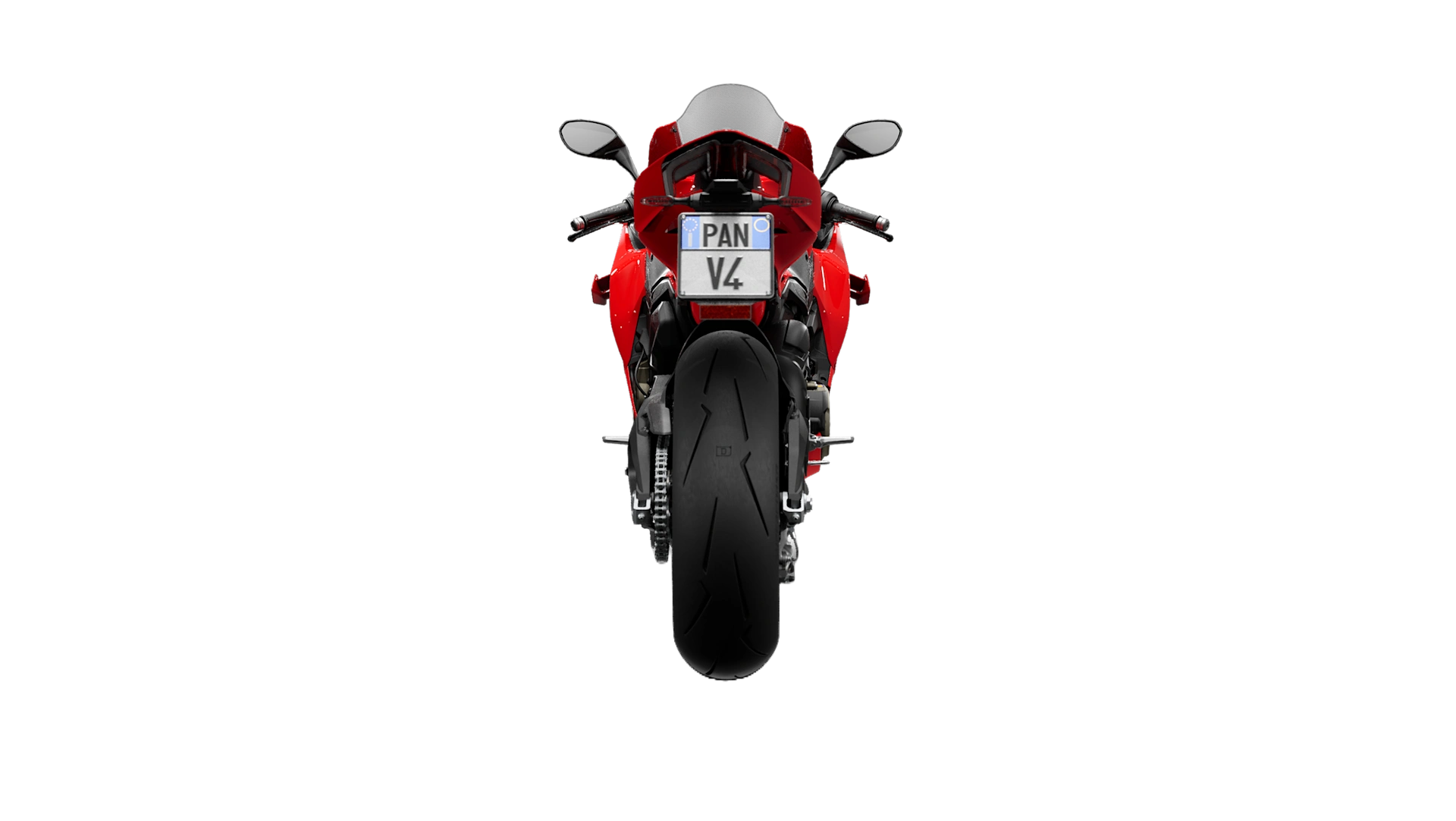

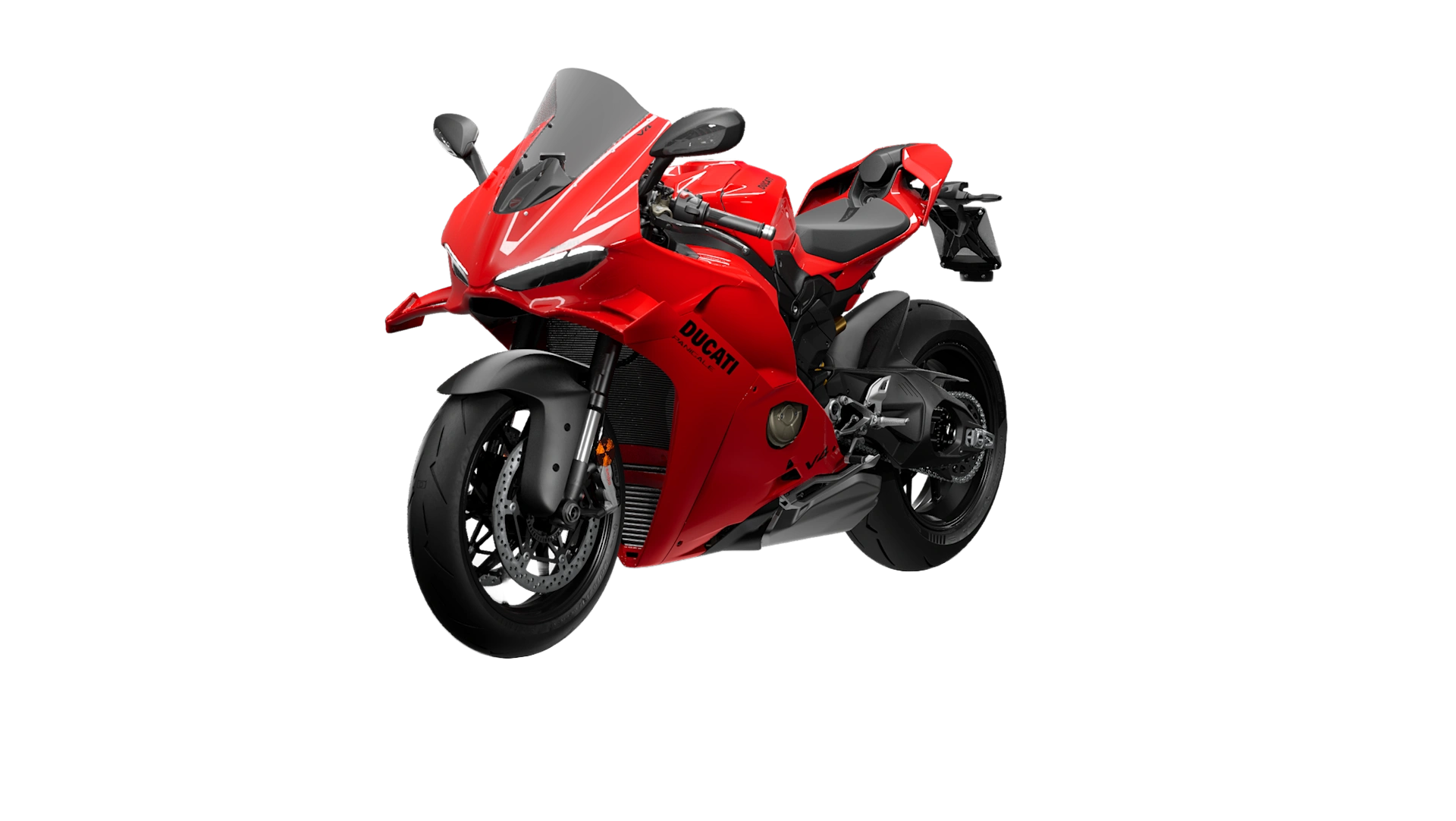

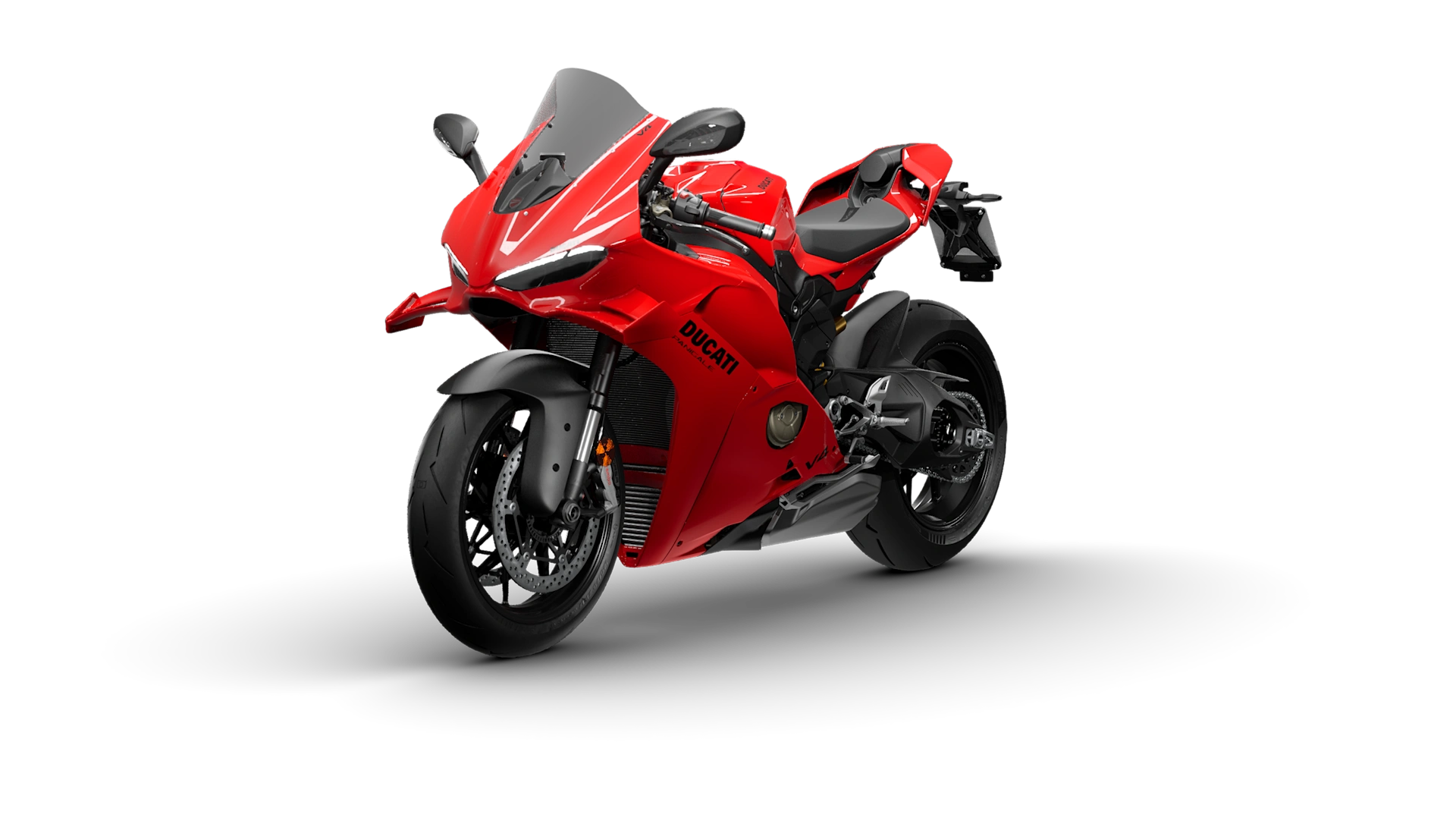

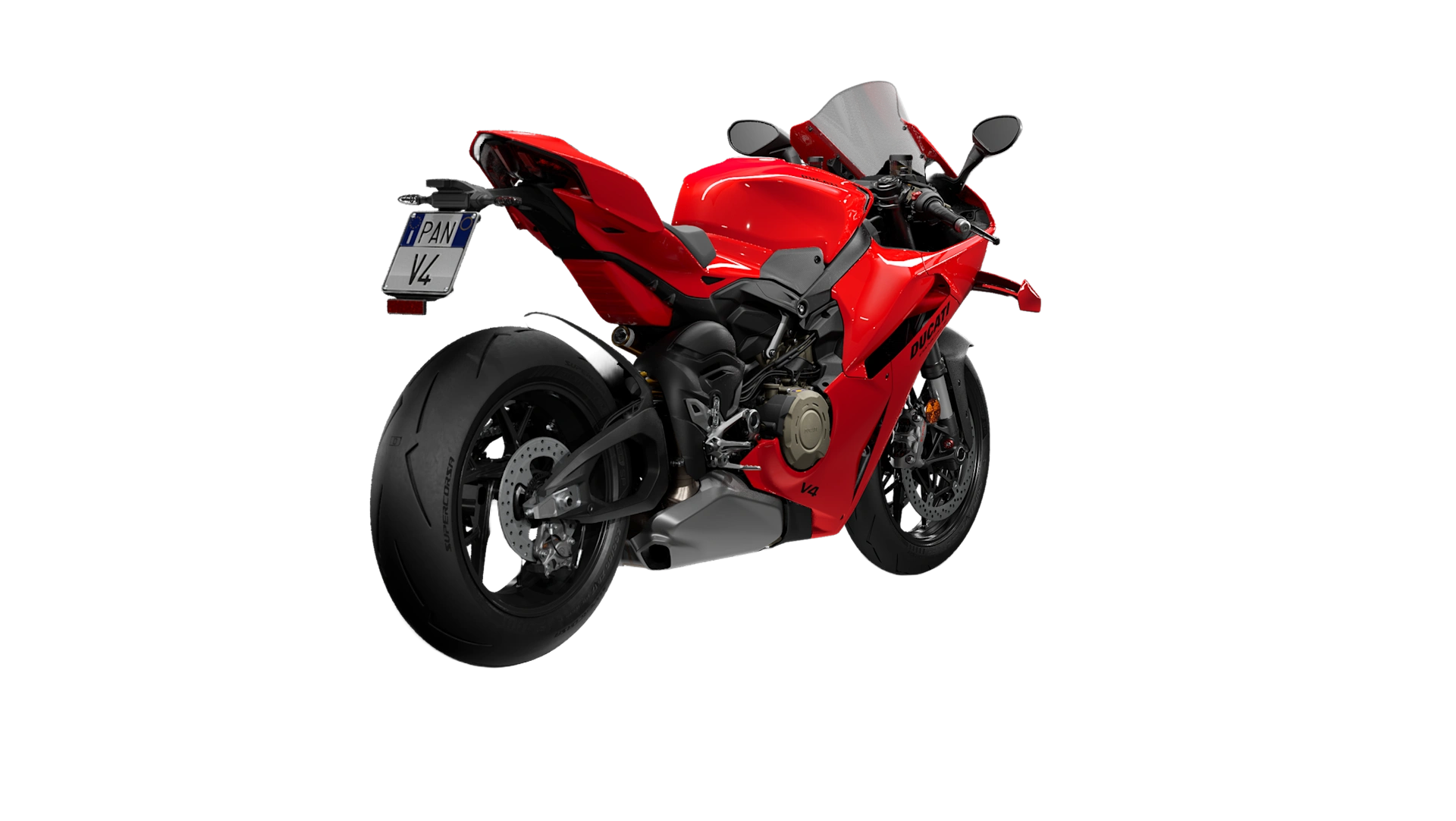

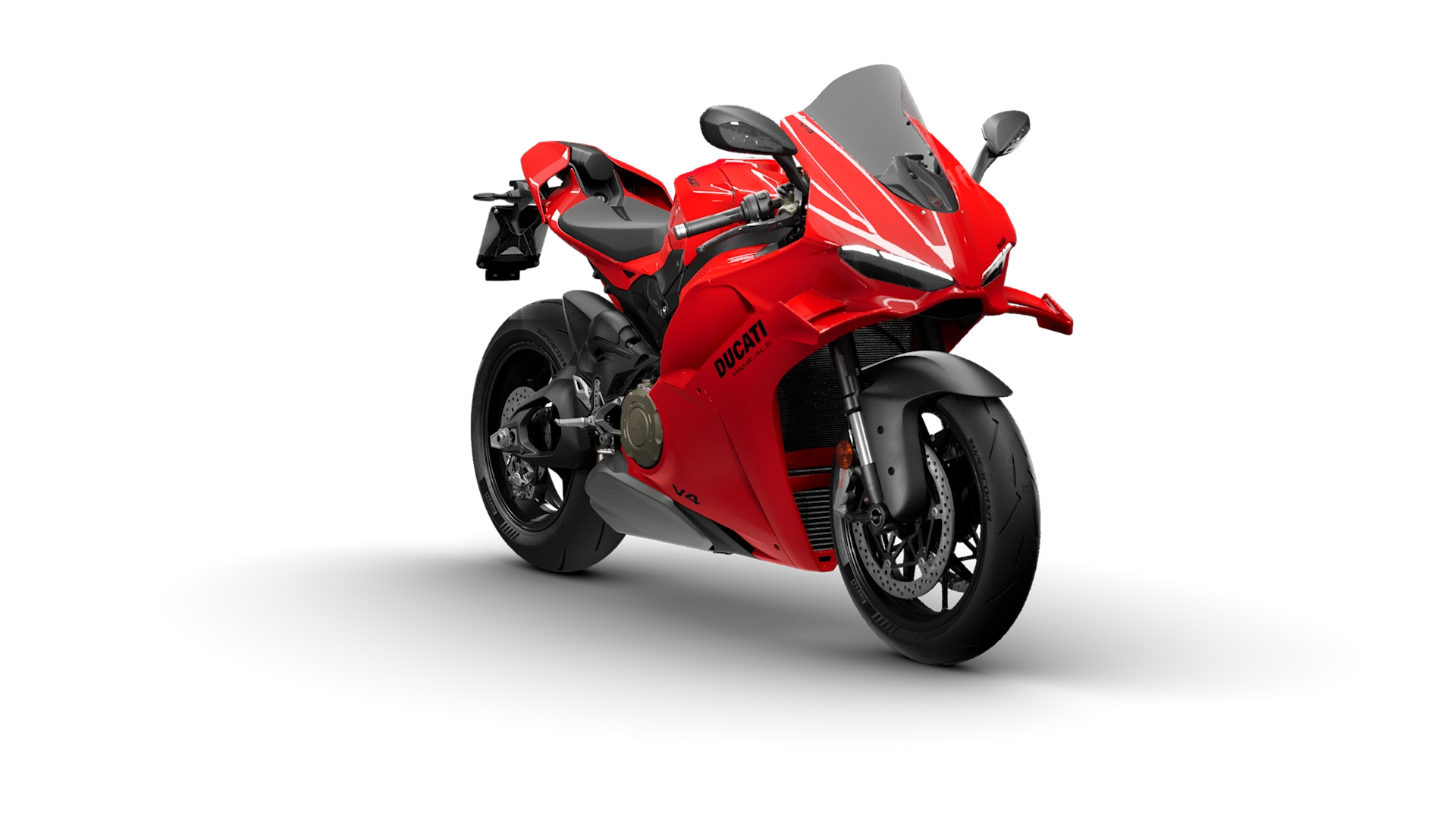

Ducati Panigale V4

Alongside the Ducati Panigale V4 stands the Panigale V4 S which benefits from Ohlins electronic suspension and lightweight Marchesini wheels.

Make it your own – Accessorise My Panigale V4

Choose your colour

£19,995.00

Overview

The Science of Speed

Track riding to the next level for amateurs and pros alike.

The 2020 version of the Panigale V4 boosts performance even further and takes track riding to the next level for amateurs and pros alike. A series of refinements make for an easier, more user-friendly, less fatiguing ride while simultaneously making the bike faster not just on individual laps but over entire timed sessions. The Aero Pack provides enhanced airflow protection and improves overall vehicle stability, enhancing confidence. The Front Frame, instead, modifies stiffness to give better front-end ‘feel’ at extreme lean angles. Ducati and Ducati Corse engineers have crunched the feedback/data numbers from customers all over the world and Superbike World Championship events. Their analysis has led to a series of aerodynamic, chassis, electronic control and Ride by Wire mapping changes: designed to increase stability and turn-in speed, these changes make it easier to close corners and ensure riders enjoy more confident throttle control.

Concept

MY2020 changes

Built according to Ducati Corse specifications.

Major changes on the Panigale V4 MY2020 chassis have seen the introduction of the Front Frame. Built according to Ducati Corse specifications, the latter features a special suspension set-up with a higher barycentre, an increased chain pull angle and improved use of suspension travel. Thanks to these modifications, the bike is easier to lay into the corner when you ease off the brakes, gets to the apex faster, soaks up any pits or ripples more effectively and behaves more neutrally out of the corner.

Design

Aero Fairing by Ducati Corse

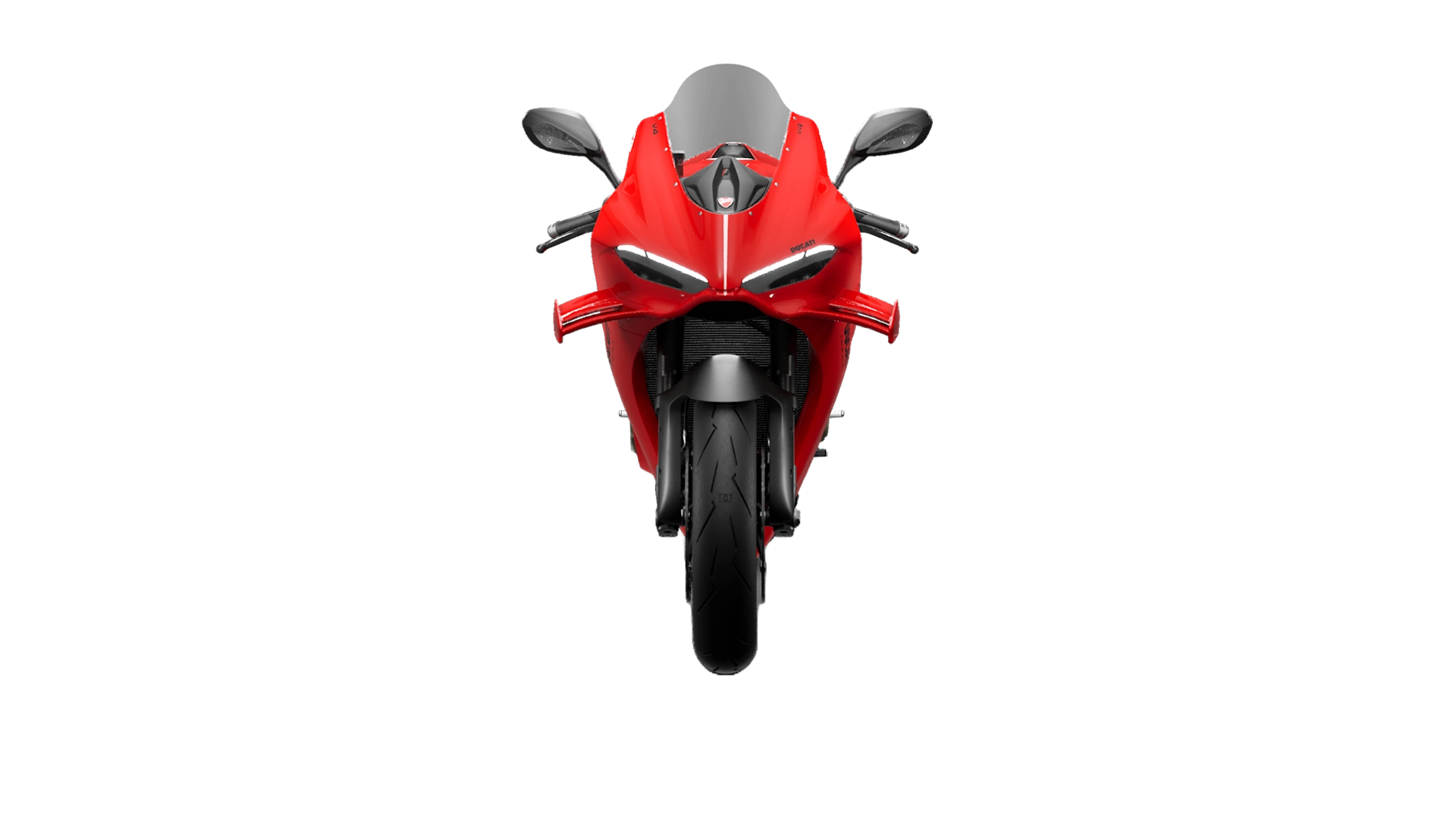

Plexiglas screen, nose fairing and larger lateral fairings, more efficient lateral vents for radiator through-air and Aerofoils

Co-developed by Ducati Corse and the Ducati Style Center, the Panigale V4 MY2020 aerodynamics package now mirrors that of the Panigale V4 R. The result; fairings that – in true Panigale style – meet official Ducati Superbike requirements in full. As in MotoGP, aerodynamic development involved a series of preliminary CFD (Computational Fluid Dynamics) studies, followed by optimisation on a full-scale wind tunnel model. The new Plexiglas screen – higher and more angled – provides better airflow protection for riders, especially in the helmet and upper shoulder areas. The screen works in concert with a new nose fairing that is higher and wider (+15 mm per side) in the arm-shield zone to reduce arm and shoulder-induced drag on the straights. The lateral fairings have been widened considerably (+38 mm per side) with the dual aim of reducing on-rider airflow impact and maximising aerofoil efficiency. On the sides, the stylish air vents of the Panigale V4 have been replaced by more efficient ones that increase air through-speeds on water and oil radiators by 6% and 16% respectively.

Engine

New changes for top performances

Specially developed Ride by Wire system mappings with several torque delivery control settings.

The Panigale V4 MY2020 features new, specially developed Ride by Wire system mappings with several torque delivery control settings. Track-dedicated RbW mapping aligns rider demand with delivered torque more closely, resulting in smoother, more predictable throttle response.

Specification

Specification

General

InstrumentsLast generation digital unit with 5" TFT colour display. Riding Modes, Power Modes, Bosch Cornering ABS EVO, Ducati Traction Control (DTC) EVO, Ducati Wheelie Control (DWC) EVO, Ducati Slide Control (DSC), Engine Brake Control (EBC) EVO, Auto tyre calibration
Warranty24 months unlimited mileage
Service Interval12,000 km (7,500 mi) / 12 months
Valve Clearance24,000 km/15,000 miles

Chassis

FrameMonocoque Aluminium with optimised stiffness
Wheelbase1.469 mm (57.8 in)
Rake24.5°
Trail100 mm (3.94in)
Front SuspensionFully adjustable Showa BPF fork. 43 mm chromed inner tubes
Front Wheel5-spokes light alloy 3.50" x 17"
Front Wheel Travel120 mm (4.7 in)
Front Brake2 x 330 mm semi-floating discs, radially mounted Brembo Monobloc Stylema® (M4.30) 4-piston callipers with Bosch Cornering ABS EVO
Front TyrePirelli Diablo Supercorsa SP 120/70 ZR17
Rear SuspensionFully adjustable Sachs unit. Aluminum single-sided swingarm
Rear Wheel5-spokes light alloy 6.00” x 17”
Rear Wheel Travel130 mm (5.1 in)
Rear Brake245 mm disc, 2-piston calliper with Bosch Cornering ABS EVO
Rear TyrePirelli Diablo Supercorsa SP 200/60 ZR17
Fuel Capacity16 l - 4.23 gallon (US)
Dry Weight175 kg (386 lb)
Wet Weight198 kg (436lb)
Seat Height835 mm (32.9 in)
Max Height
Max Length

Engine

TypeDesmosedici Stradale 90° V4, 16 Desmodromic valves. Driven by chain.
Displacement1,103
Bore And Stroke81 x 53.5 mm
Compression Ratio14:01
Power157.5 kW (214 hp) @ 13,000 rpm
Torque124.0 Nm (91.5 lb-ft) @ 10,000 rpm
Fuel DeliveryFour oval throttle bodies with an equivalent diameter of 52 mm, connected to variable length intake manifolds. 2 Injectors per cylinder.Semi-dry sump lubrication with four oil pumps: 1 delivery and 3 return
Exhaust4-2-1-2 system with 2 catalytic converters and 2 lambda probes
EmissionsEuro 4
Gearbox6 speeds with Ducati Quick Shift (DQS) up/down
Ratio1=38/14 2=36/17 3=33/19 4=32/21 5=30/22 6=30/24
Primary DriveStraight cut gears; Ratio 1.80:1
Final DriveChain; Front sprocket 16; Rear sprocket 41
ClutchSlipper and self-servo wet multiplate clutch with hydraulic control
Warranty

Ducati Ever Red

The Ducati Factory Warranty Extension

We’ve got it covered.

Ever Red is only available to be purchased at time of first registration of a new Ducati motorcycle.

This warranty extension covers the whole bike for an additional one or two years (excluding wear and tear parts, aesthetic defects, accessories or battery).

Roadside assistance is also extended for the duration of the extension period selected.

Both warranty and extension are covered Europe wide.

The warranty stays with the bike when sold or transferred thus adding to residual value.

Prices valid from 01/01/2020 and are inclusive of VAT.

Model12 months24 months
Panigale V4 R£796.00 £1095.00
Panigale V4£449.00 £625.00
Streetfighter V4£449.00 £625.00
Diavel£299.00 £445.00
XDiavel£299.00 £445.00
Panigale V2£299.00 £445.00
Supersport£199.00 £295.00
Hypermotard£199.00 £295.00
Monster£199.00 £295.00
Scrambler£199.00 £295.00
Terms and Conditions

With Ever Red warranty extension, your bike is entirely covered for manufacturing defects.

Ever Red warranty extension includes all features in line with the standard manufacturer warranty.

However, it does not include:

a) Malfunctions owing to improper maintenance, repair or lack of care for the bike (we remind you that the official Ducati maintenance plan must be respected for the standard or extended warranty to be valid).

b) Components subject to wear or deterioration as a result of the normal operation of the bike (for example: tyres, filters, lights, final drive, belts, flexible controls, spark plugs, friction components including the clutch and brake pads and discs).

c) Aesthetic damage to painted or chromed surfaces, also as a result of oxidation or atmospheric agents owing to environmental conditions or exceptional circumstances, or to irregular or incorrect washing of the bike.

d) Installation of components/accessories and modifications to the bike that are not approved by Ducati.

e) The bike’s battery.

f) Bikes used in any kind of sporting competition.

g) Bikes used for commercial or rental services.

In the event of any query regarding your warranty please contact us here at Ducati Norwich 01508 471919
